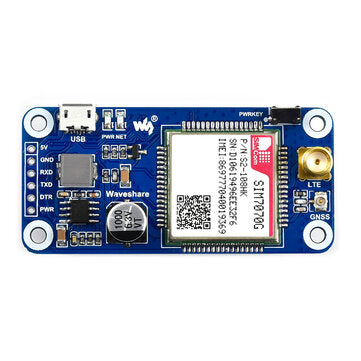

Catda SIM7070G NB-IoT / Cat-M / GPRS / GNSS HAT for Raspberry Pi Global Band Support For Raspberry 4

Catda SIM7070G NB-IoT / Cat-M / GPRS / GNSS HAT for Raspberry Pi Global Band Support For Raspberry 4

$1,085.00 USD
$1,808.33 USD $1,085.00 USD
Sale Sold out

Features:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
  • Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
  • 2x LED indicators, easy to monitor the working status
  • Baudrate: 300~3686400 bps
  • Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications:

NB-IOT/CAT-M/2G
Band NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
GSM/GPRS/EDGE: 850/900/1800/1900MHz
Data rate NB-IoT: 136Kbps(DL)/150Kbps(UL)
Cat-M: 589Kbps(DL)/1119Kbps(UL)
GPRS: 85.6Kbps(DL)/85.6Kbps(UL)
EDGE: 236.8Kbps(DL)/236.8Kbps(UL)
SIM card support NB-IoT/Cat-M/2G card (1.8V SIM card ONLY)
Applicable region global
GNSS
Receiver type 16-channel
C/A Code
Band GPS L1: 1575.42 ± 1.023MHz
GLONASS L1: 1598.0625 ~ 1605.375MHz
BDS B1: 1559.052 ~ 1591.788MHz
Galileo L1: 1575.42 ± 1.023MHz
Data format NMEA-0183
Antenna Active antenna
OTHER
Power supply 5V
Operating voltage 5V / 3.3V (configured via 0??? resistor)
Current consumption about 41mA (idle mode)
Operating temperature -40?￣C ~ 85?￣C
Storage temperature -45?￣C ~ 90?￣C
Dimensions 30.50mm ? 65.00mm

Selection Guide

? CAT-M & NB-IOT & GSM CAT-M & NB-IOT
