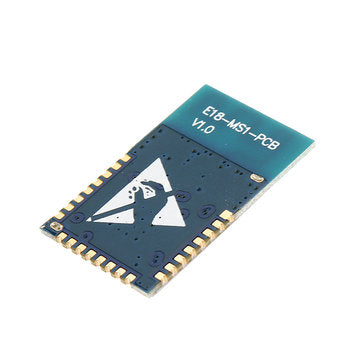

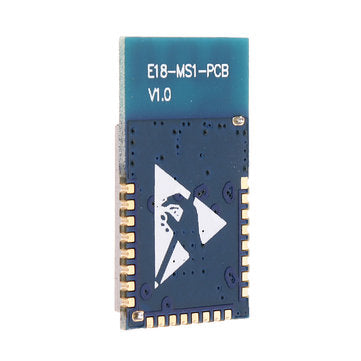

CC2530 Core Board CC2530F256 2.4G 4dBm 2.5mW Wireless Transceiver Module Network Zig bee Board

Specifications: ? 1. Model: E18-MS1 2. Operating frequency: 2405-2408MHz 3. Interface pins: 3*8*1.27mm 4. Operating voltage: 2.0V-3.6V DC 5. Communication level: 0.7VDD-5VDC 6. Transmit power: 4dBm (about 2.5mW) 7. Found Distance: 200 m (max) 8. Air velo city: 250Kbps 9. Emission current: 28mA (4dBm) 10. Receiving Current: 27mA 11. Transceiver Length: 1 ~ 103byte 12. Receiving sensitivity: -97dBm@250Kbps 13. Working temperature: -40? ~ 85 Degree 15. Humidity: 10% to 90% 15. Storage temperature: -40? ~ 125 Degree 16. Radio frequency chip : CC2530 ? NOTE: ? This module for the hardware platform, the factory without procedures, the user needs to be secondary development! ? Package Included: ? 1 x CC2530 Core Board CC2530F256 2.4G 4dBm 2.5mW Wireless Transceiver Module
