CE034 DC 5V 12V 24V Bluetooth Relay Android APP Mobile Phone Remote Control Optical isolation Switch

Document click to download:?

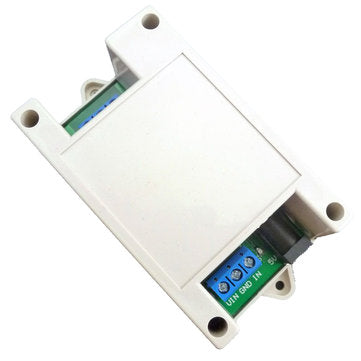

Description:? ? - Operating voltage: power supply 1, DC 6-25V; power supply 2,C 5V - Operating Current: Standby 11MA, Relay Open 45MA (voltage DC 12V) - Bluetooth:? V2.1? ?EDR, Class 2 - 2.4GHz-2.48GHz unlicensed ISM band - Send commands via? Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending? commands to control),It can also be triggered by an external pulse signal. -? Momentary Self-locking? open close 4 Commands - External trigger input, opto-isolated switch, low pulse inputs. - Size (including housing) 81 * 50 * 32 - Relay Maximum load:10A/250VAC ,10A/125VAC,10A /30VDC, 10A /28VDC ,10A /12VDC

?

Bluetooth relay manual:

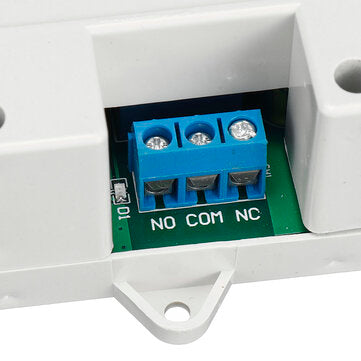

NO???????? : Relay normally open contact

COM?????? : Relay common contact

NC???????? : Relay normally closed contact

Momentary? : Mobile terminal input A0, the relay is open,and???? after delay of 1 second the relay is Close.

Self-locking? : Mobile terminal input A1, the relay is Open, input A1, the relay is Close, and so on

Open????? : NO connection COM, NC disconnect COM

Close????? : NO disconnect COM, NC connection COM

?

External trigger input: low pulse triggering, pulse width greater than 200 milliseconds.

Two control methods, external trigger signal and Command Control,It can be composed of flexible and diverse control.

?

CommandS?(Format:?character, case-insensitive)

CommandS	Features	Description
A0	Momentary	Mobile terminal input A0, the relay is open,and after delay of 1 second the relay is Close.
A1	Self-locking	Mobile terminal input A1, the relay is Open, input A1, the relay is Close, and so on
A2	Open	NO?connection COM, NC?disconnect COM
A3	Close	NO?disconnect COM, NC?connection COM
A4	Open	NO?connection COM, NC?disconnect COM

?

Bluetooth APP operations:

Access Password?:?1234
Bluetooth Baud rate: 9600BPS
