CGJ100M 1.8-50mhz Portable Automatic Antenna Tuner 1-40W USB Rechargeable with 0.91inch OLED Display

Description:

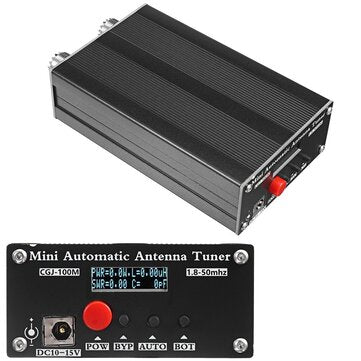

The device contains a set of 7 capacitors and 7 inductors, which enables it (with the largest configuration) to work effectively in a wide frequency band, overlapping the amateur radio HF band of 1.8-50mhz. Power supply :?DC 10-15V? Maximum current consumption: 400ma Maximum working throughput: 40W Maximum possible measurement power: 50W Minimum power required to start tuning: 1W The smallest possible measurement power: 0.1W Steps for measuring power up to 10W: 0.1W Measurement procedure for power higher than 10W: 1W Power measurement accuracy: 10% Maximum installation inductance: 8.53uH Minimum installation inductance step length: 0.05uH Maximum installation capacitance: 1869pF Minimum installation capacitance step length: 10pF The number of panel buttons is 4: power supply POW, BYP pass-through, AUTO automatic, BOT function Display: 0.91inch OLED
Package Included:
1 x?Automatic Antenna Tuner?

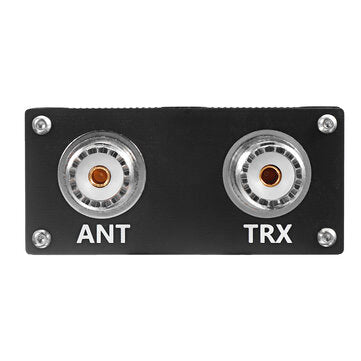

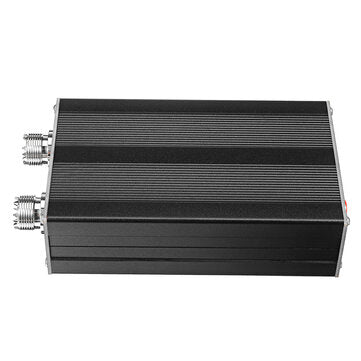

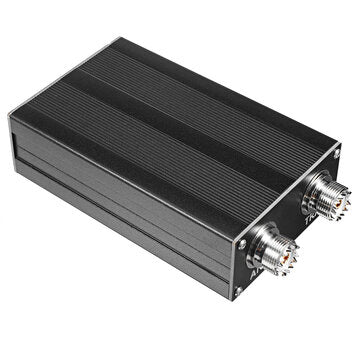

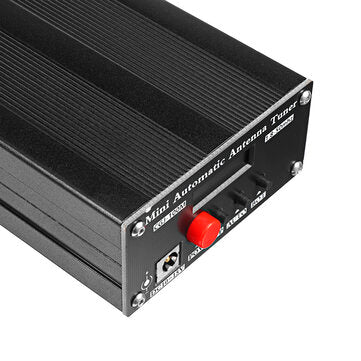

Details Picture:
