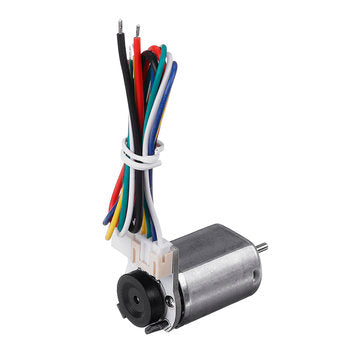

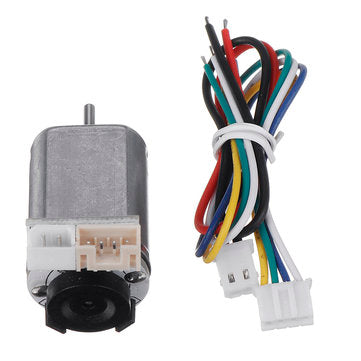

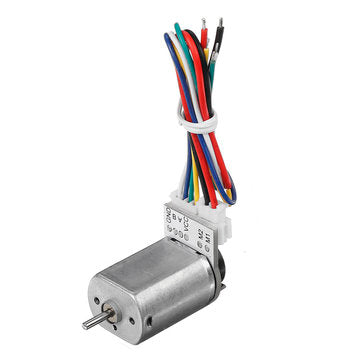

CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo
CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo
Regular price
$440.00 USD
Regular price
$733.33 USD
Sale price
$440.00 USD
Unit price
per
Couldn't load pickup availability
Description:
CHIHAI CHF-130SA-ABHL 6V Permanent Magnet DC Hall Coded Reduction Gear Motor ? Specification:
Feature:
- N-S 14 pole magnet. - AB phase dual hall encoding board withbuilt-in pull-up resistence. - Metal gear reduction mechanism: high strength, stable transmission, high efficiency and high torque. -? Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life. ? Package Included: 1 x Reduction Gear Motor
? More Details: ?
CHIHAI CHF-130SA-ABHL 6V Permanent Magnet DC Hall Coded Reduction Gear Motor ? Specification:
| Brand | Chihai motor |
| Model | CHF-130SA-ABHL (Permanent magnet dc hall coded reduction motor) |
| Shaft diameter | a??2mm |
| Shaft Length | 10mm |
| Weight | ?About 28g |
| Applications | Automation of bathroom appliances,robot education, Applications TT motor coding input,smart toys,smart instrument,etc? |
| Voltage | DC6.0V |
| No-load Speed | 9500±10% rpm? |
| No-load Current | a???150mA |
| Rated load | 20 g.cm |
| Rated speed | 6200±10%rpm |
| Rated Current | 0.55 A MAX |
| Rated Power | 1.3W |
| STALL Torque | a???45 g.cm |
| STALL Current | 1.2A |
Feature:
- N-S 14 pole magnet. - AB phase dual hall encoding board withbuilt-in pull-up resistence. - Metal gear reduction mechanism: high strength, stable transmission, high efficiency and high torque. -? Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life. ? Package Included: 1 x Reduction Gear Motor
? More Details: ?
