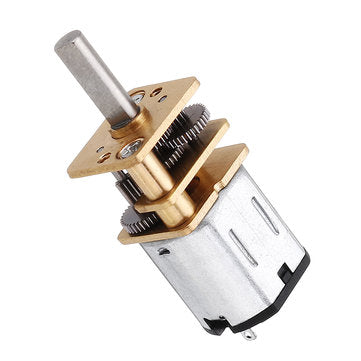

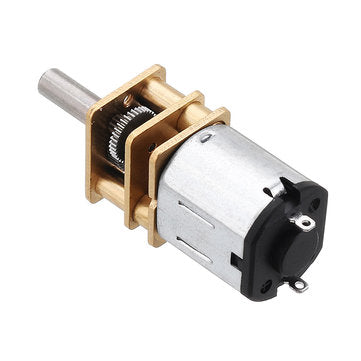

CHIHAI CHF GM12 N10VA Motor DC 3V 215rpm 1:100 Ratio Permanent Magnet Micro Reduction Gear Motor

CHIHAI CHF GM12 N10VA Motor DC 3V 215rpm 1:100 Ratio Permanent Magnet Micro Reduction Gear Motor

Regular price $443.00 USD
Regular price $738.33 USD Sale price $443.00 USD
Sale Sold out
Description:
CHIHAI CHF GM12 N10VA DC 3V 215rpm 1:100 Ratio DC motor,?permanent magnet micro reduction gear motor.

Specification:
Type CHF GM12 N10VA 92 Type?
Shaft diameter 3mm, D type?
Shaft length 10mm
Voltage? DC 1.5V-6.0V
Working voltage 3V
Power max 0.42W
Reduction ratio 1:100
No-load current a???85A
No load speed? 215RPM
Rated torque? 400g.cm?
Rated speed ? 105RPM
Rated current? a???0.50A
Locked-rotor torque a???0.8kg.cm?
Plug the plug to turn the current a???0.1A
Application Office equipment, robot, camera rocker arm, home appliances.

Features:
1. All-metal gear: we use all-metal gear material to make it more wear-resistant and extend service life.
2.D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time.
3.?Three - layer copper plate: precision mold continuous stamping and good wear resistance, high temperature resistance and vibration.
4.High torque, adjustable,low energy consumption, low noise, stable life, long life, positive and negative turn.

Package Included:
1 X?DC motor
