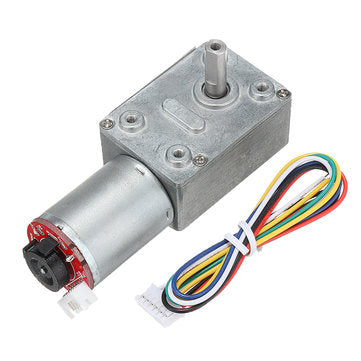

Chihai CHW-GH4632-370 Reduction Gear Encoder Motor Permanent Magnet DC Hall... (ROTATE SPEED: 60RPM)

SELECTED OPTION:
ROTATE SPEED: 60RPM

Descriptions: Chihai CHW-GH4632-370 reduction gear motor permanent magnet dc hall coding motor with code
? Specifications:
Brand: Chihai Motor
Model:?CHW-GH4632-370 DC hall reduction motor
Shaft Length: 55mm full threaded shaft Shaft Diameter: M6 x 1.0 threaded shaft Voltage: 12V/24V Weight: about 200g Machine Size: diameter 25mm, total length 45mm

Voltage (V)	12.0	24.0
Out Power (W)	3.3	12.0
Reduction Ratio	1:200
No load Speed(rpm)	30	60
No load Current (mA)	a???150	a???200
Nominal Torque (Kg.cm)	10.0	7.5
Nominal Speed (rpm)	21	42
Nominal Current (A)	a???0.5	a???0.7
Stall Torque (kg.cm)	can't exceed 30.0kg.cm
Stall Current (A)	a???1.2	a???2.3
Hall Signal (11 x RATIO)	2200

Coder Wiring Instruction: - M2 motor power input + - VCC hall power input + (DC 5.0V or DC 3.3V) - Hall signal output phase B - Hall signal output phase A - GND hall power input + - M1 motor power input -
Features:
- Large torque, adjustable, positive and negative; - Low energy consumption and low noise; - Worm gear reduction drive, strong self-locking power off; - The rotor part is made of pure copper, the resistance is small, and the conductivity is strong, which makes the motor torque increase; - M6 international threaded shaft. ? Package Included:
1 Pc x?Chihai CHW-GH4632-370 reduction gear motor ? More Details:

?
