Chihai GM37-550 12V 330/550/1650rpm Reduction Gear Carbon Brush High Torque DC Geared ... (TYPE: .A)

SELECTED OPTION:
TYPE: .A

Descriptions:

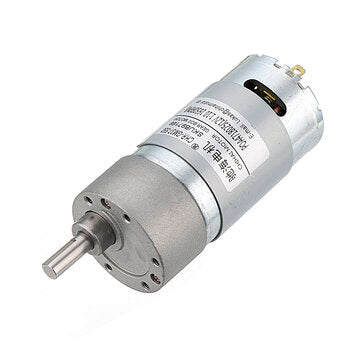

Chihai GM37-550 12V 330/550/1650rpm reduction gear carbon brush high torque DC geared motor

Specifications:
Brand: Chihai Motor
Model:?GM37-550?Carbon Brush High Torque DC Geared Motor

Type	Use voltage	Max. input power	Reduction ratio	No load		Rated				Blocking Current	Reducer length
				Current	Speed	Torque		Speed	Current
A	DC12.0V	40W	1:10	a???1100mA	1650rpm	3.0Kg.cm	294.1mN.m	1100rpm	a???6.0A	20.0A	19.0L 21.5L
B			1:30		550rpm	9.0Kg.cm	882.3mN.m	360rpm
C			1:50		330rpm	15.0Kg.cm	1471mN.m	215rpm			24.0L

Note: Since the motor has high power and high current, please use it with a power supply of 10A or more.
Features:
- High torque, high power, low noise; - The motor has magnetic protection ring protection, high quality pure copper coil motor; - Pure copper terminal block, built-in cooling fan blades for the motor; - All metal gears, helical gear reduction structure.
? Package Included:
1 x?Carbon Brush High Torque DC Geared Motor

More Details:
