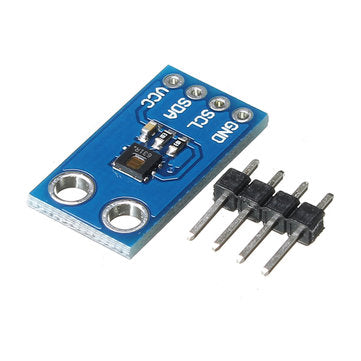

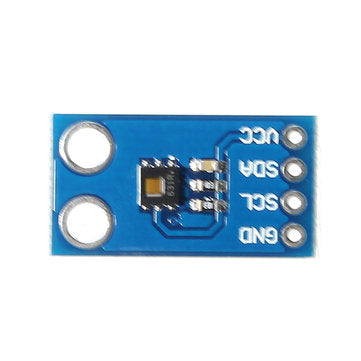

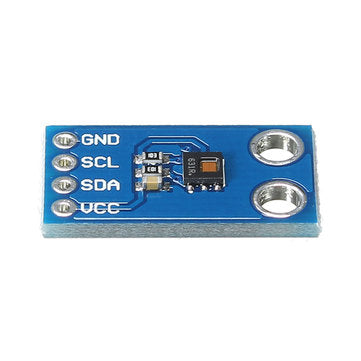

CJMCU-1080 HDC1080 High Precision Temperature And Humidity Sensor Module

Description:

The HDC1080 is a digital humidity sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power. The HDC1080 operates over a wide supply range, and is a low cost, low power alternative to competitive solutions in a wide range of common applications. The humidity and temperature sensors are factory calibrated.

Feature:

Relative Humidity Accuracy ±2% (typical)
Temperature Accuracy ±0.2?￣C (typical)
Excellent Stability at High Humidity
14 Bit Measurement Resolution
100 nA Sleep Mode Current
Average Supply Current:
????????????????????????????????????????? 710 nA @ 1sps, 11 bit RH Measurement
????????????????????????????????????????? 1.3 ??A @ 1sps, 11 bit RH and Temperature Measurement
Supply Voltage 2.7 V to 5.5 V
Small 3 mm ?? 3 mm Device Footprint
I²C Interface

Applications:

HVAC
Smart Thermostats and Room Monitors
White Goods
Printers
Handheld Meters
Medical Devices
Wireless Sensor (TIDA: 00374, 00484, 00524)

Diagram:



Package included:

1 x Temperature And Humidity Sensor Module
?

?
, , ,
