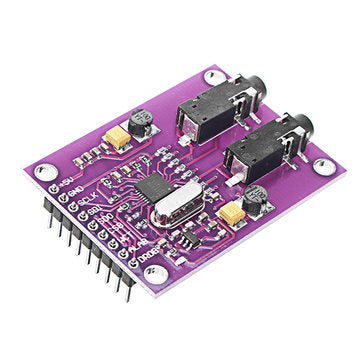

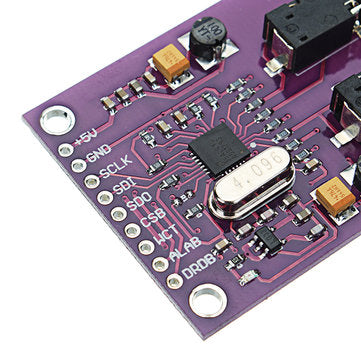

CJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement Module 3 Channel 24 Bit

Characteristic: ? Three high-resolution digital ECG channels with synchronized pacing output Anti-electromagnetic interference (EMI) input Low power consumption: 0.3mW per channel Input incoming noise: 7uVpp (40Hz bandwidth) Input bias current: 175pA Data rate: up to 25.6ksps Differential input voltage range: ± 400mV Analog supply voltage: 2.7 ~ 5.5V Digital input / output (I / O) Supply voltage: 1.65V ~ 3.6V Right leg drive amplifier AC and DC lead disconnection detection Wilson and Goldberger terminals ALARMB pin for interrupt-driven diagnostics Battery voltage monitoring Built-in oscillator and reference Flexible power-off and standby mode ? Application: ? Portable 1/2/3/5/6/7/8/12 Lead ECG Patient vital signs monitoring: Holter, events, stress and telemedicine.

Package included:

1 x?CJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement
