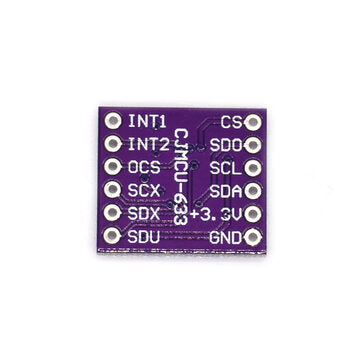

CJMCU-633 LSM6DSO 6DOF 3D Gyroscope Attitude Sensor Module 3D Accelerometer 3.3V SPI IIC I2C MIPI I3
CJMCU-633 LSM6DSO 6DOF 3D Gyroscope Attitude Sensor Module 3D Accelerometer 3.3V SPI IIC I2C MIPI I3
Regular price
$548.00 USD
Regular price
$913.33 USD
Sale price
$548.00 USD
Unit price
per
Couldn't load pickup availability
Feature:
LSM6DSO is an attitude module with 3D digital accelerometer and 3D digital gyroscope. Improve performance at a speed of 0.55 mA in high-performance mode, and enable the always-on low-power function. LSM6DSO supports major OS requirements, provides real, virtual and batch processing of 9 KB sensors for dynamic data batch processing, compatible with Androido ? Product parameters:
1. Linear acceleration measurement range: ± 2 / ± 4 / ± 8 / ± 16g full scale 2. Angularvelocity measurement range: ± 125 / ± 250 / ± 500 / ± 1000 / ± 2000dps full scale 3. Working voltage: 3.3 V 4. Independent 10 power supply: 1.62 V 5. Data interface: SPI / I2C & MIPI I3C SM serial interface, with main processor data synchronization function 6. Auxiliary SPI: OIS data output for gyroscope and accelerometer 7. Pedometer: step detector and step counter 8. Detection: display motion detect, tilt detection 9. Standard interrupt: free fall, wake up, 6D / 4D direction, single click and double click 10. Programmable finite state machine: accelerometer, gyroscope and external sensor 11. Embedded temperature sensor 12. IIC clock rate: <400KHZ (fast mode) 13. SPI clock frequency: <10MHZ
Instructions for use: IIC operation: If the SDO / SAO pin is connected to the supply voltage, the LSb is 1 `(address 1101011b); otherwise, if the SDO / SAO pin is grounded, the LSb value is` 0` (address 1101010b).
Package includes:
1 x?Gyroscope Attitude Sensor Module
LSM6DSO is an attitude module with 3D digital accelerometer and 3D digital gyroscope. Improve performance at a speed of 0.55 mA in high-performance mode, and enable the always-on low-power function. LSM6DSO supports major OS requirements, provides real, virtual and batch processing of 9 KB sensors for dynamic data batch processing, compatible with Androido ? Product parameters:
1. Linear acceleration measurement range: ± 2 / ± 4 / ± 8 / ± 16g full scale 2. Angularvelocity measurement range: ± 125 / ± 250 / ± 500 / ± 1000 / ± 2000dps full scale 3. Working voltage: 3.3 V 4. Independent 10 power supply: 1.62 V 5. Data interface: SPI / I2C & MIPI I3C SM serial interface, with main processor data synchronization function 6. Auxiliary SPI: OIS data output for gyroscope and accelerometer 7. Pedometer: step detector and step counter 8. Detection: display motion detect, tilt detection 9. Standard interrupt: free fall, wake up, 6D / 4D direction, single click and double click 10. Programmable finite state machine: accelerometer, gyroscope and external sensor 11. Embedded temperature sensor 12. IIC clock rate: <400KHZ (fast mode) 13. SPI clock frequency: <10MHZ
Instructions for use: IIC operation: If the SDO / SAO pin is connected to the supply voltage, the LSb is 1 `(address 1101011b); otherwise, if the SDO / SAO pin is grounded, the LSb value is` 0` (address 1101010b).
Package includes:
1 x?Gyroscope Attitude Sensor Module
