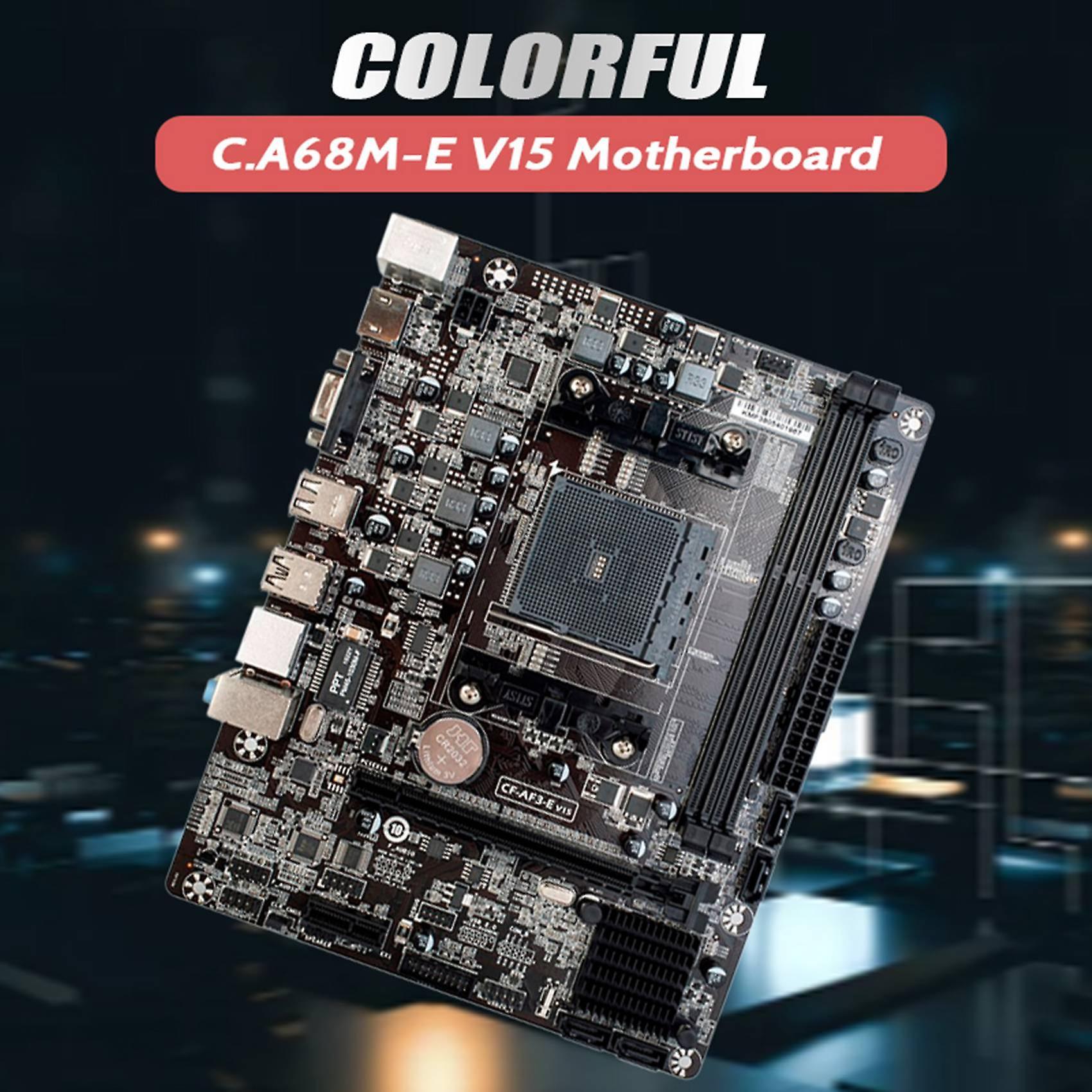

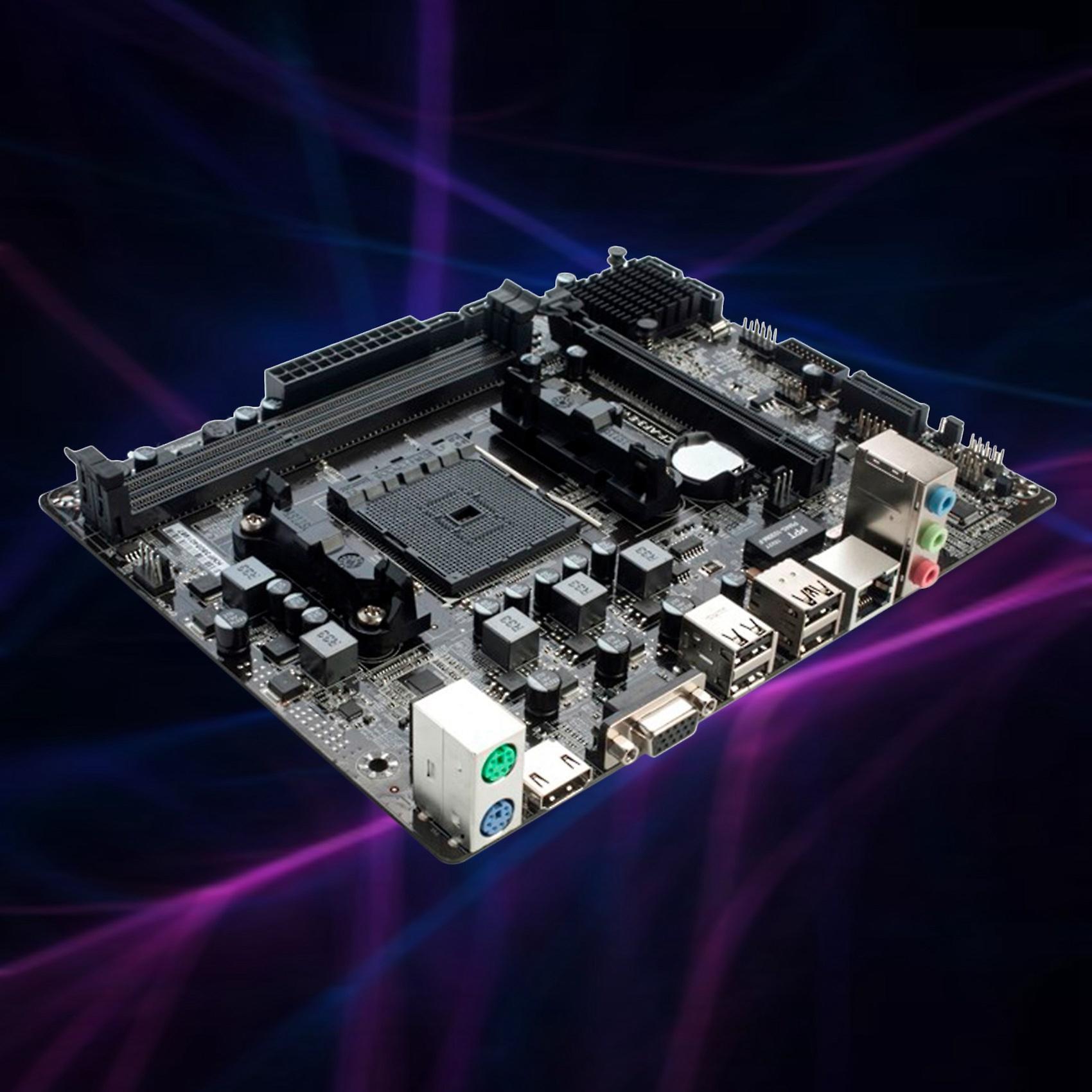

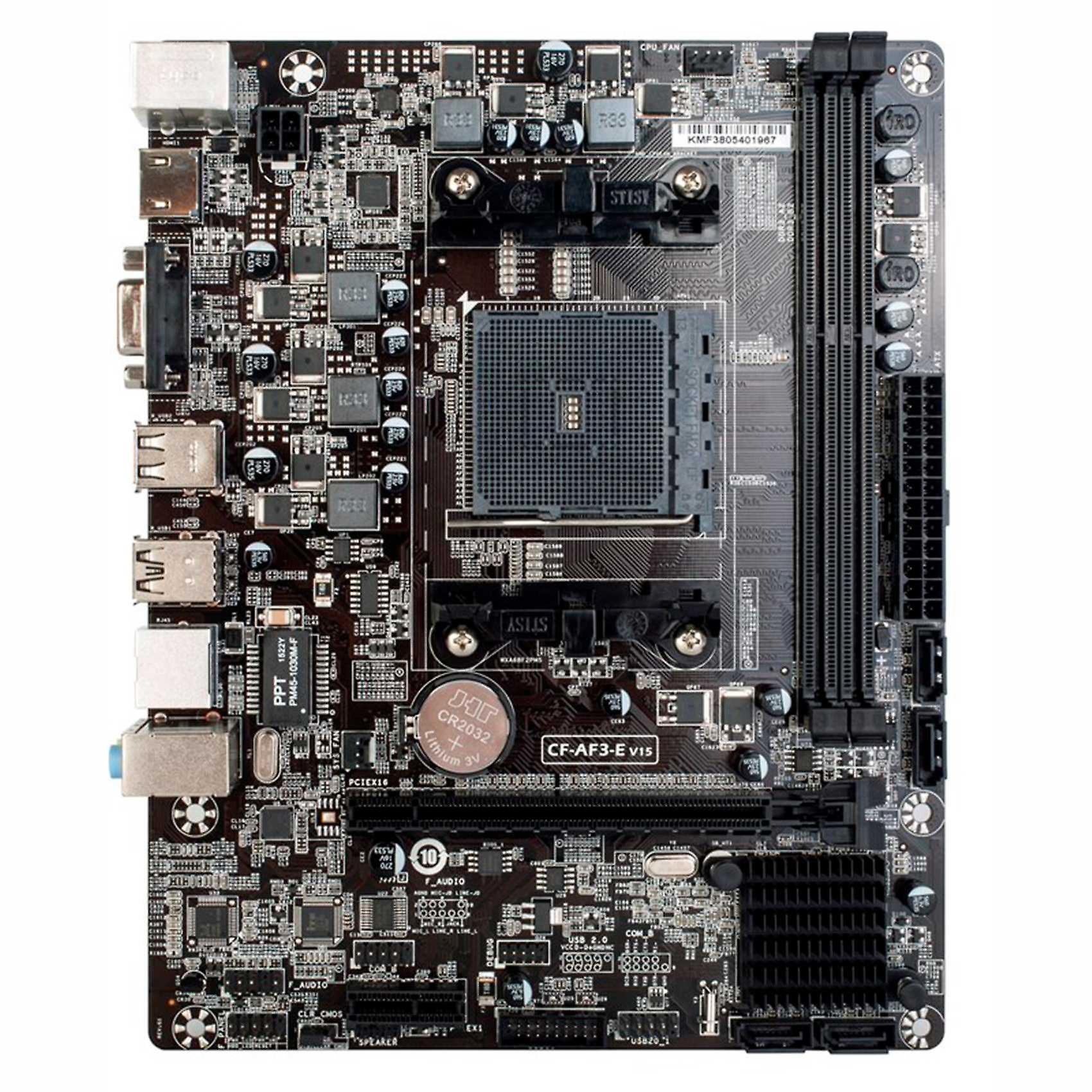

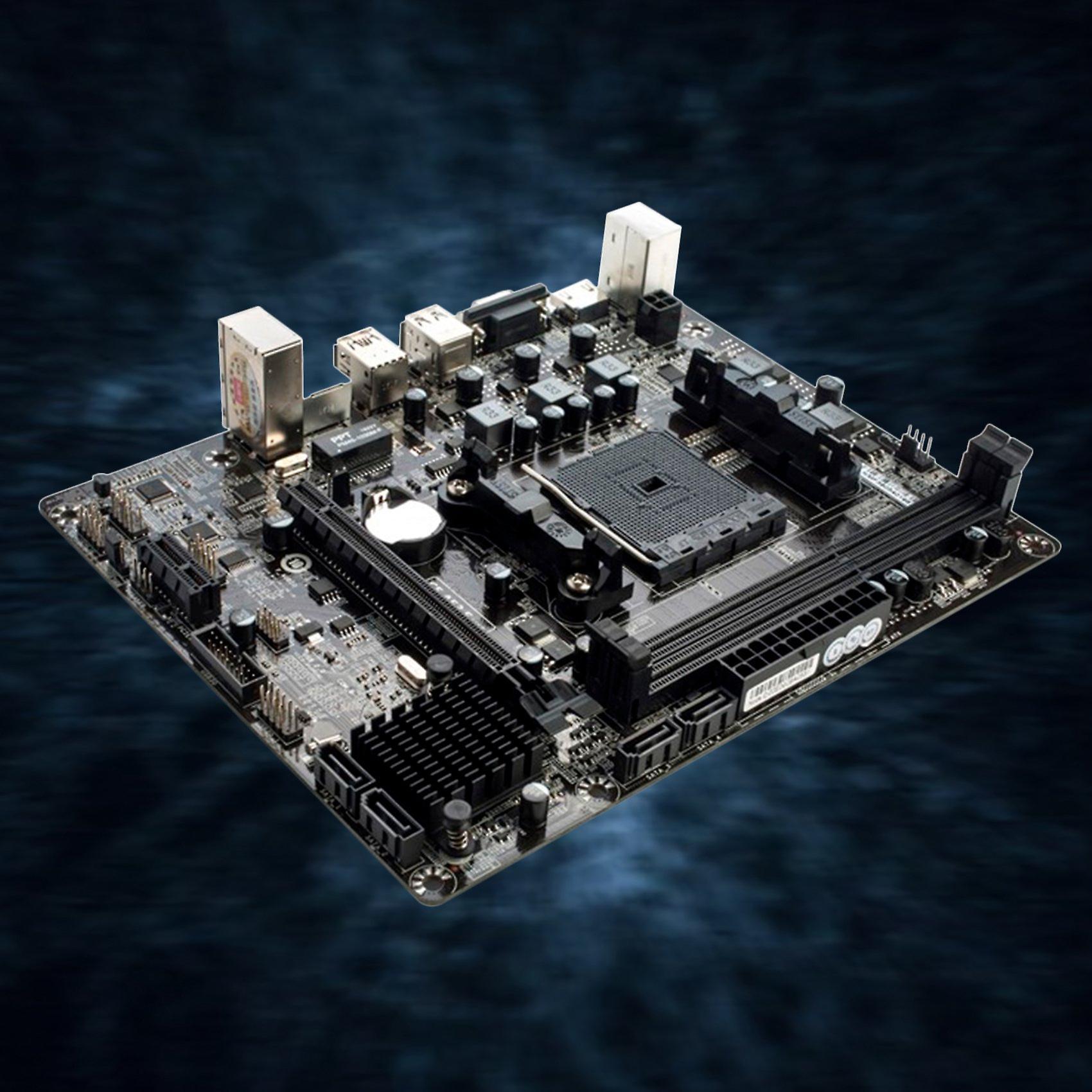

Colorful C.a68m-e V15 Motherboard A68h Support 2xddr3 Rtl8105e

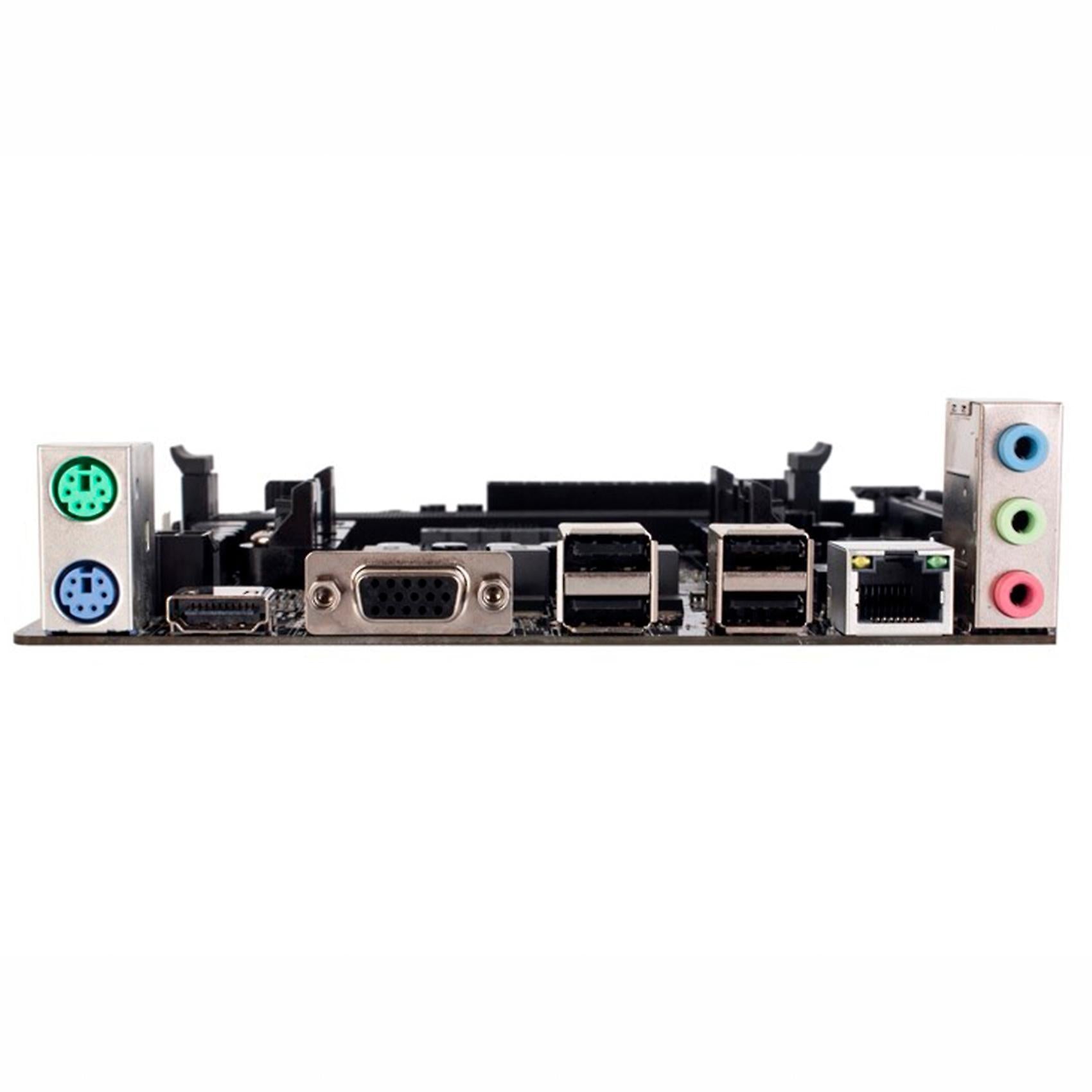

Motherboard series: smart motherboard, for AMD platform seriesChipset: for AMD FM2+ A68HCPU support: support FM2/FM2+ interface processor (TDP: 100W)Memory support: 2 memory module slots, support DDR3 dual channel 1066/1333/1600/1866(OC)/2133(OC) MHz memoryGraphics card support: 1 PCIE2.0/3.0 X16 slot (to support PCIE3.0, you need to use FM2+ APU)Storage interface: 4 SATA3.0 6Gb/s hard disk interfaces, support RAID0, 1, 10, AHCIExpansion interface: 2xPS2 mouse and keyboard interface; 1x (HDMI+VGA) interface; 4xUSB2.0 interface; 1xRJ45 gigabit dual for Apple interface protection network interface; 3 audio input/output interfaces; expansion interface: 1x9pin USB2.0 interface; 1x19pin USB3 .0 interface; 1x9pin COM interfaceSystem BIOS: 64M UEFIPower management: support S4, S5 wake-up, scheduled boot, call boot, support network S5 wake-upHardware monitoring: CPU fan speed controllable, SYSTEM fan speed monitoring, CPU temperature monitoring, and each group of voltage monitoringOnboard network card: RTL8105E 100MOnboard sound card: ALC662-VD 6 channelsOther functions: PXE, smart motherboard 4.0Different batches, the appearance and color of the product may be different, which will not affect the usecolour:BlackMaterial:PCBsize:170 x 215mmPackage Contents:1 x MotherboardOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
