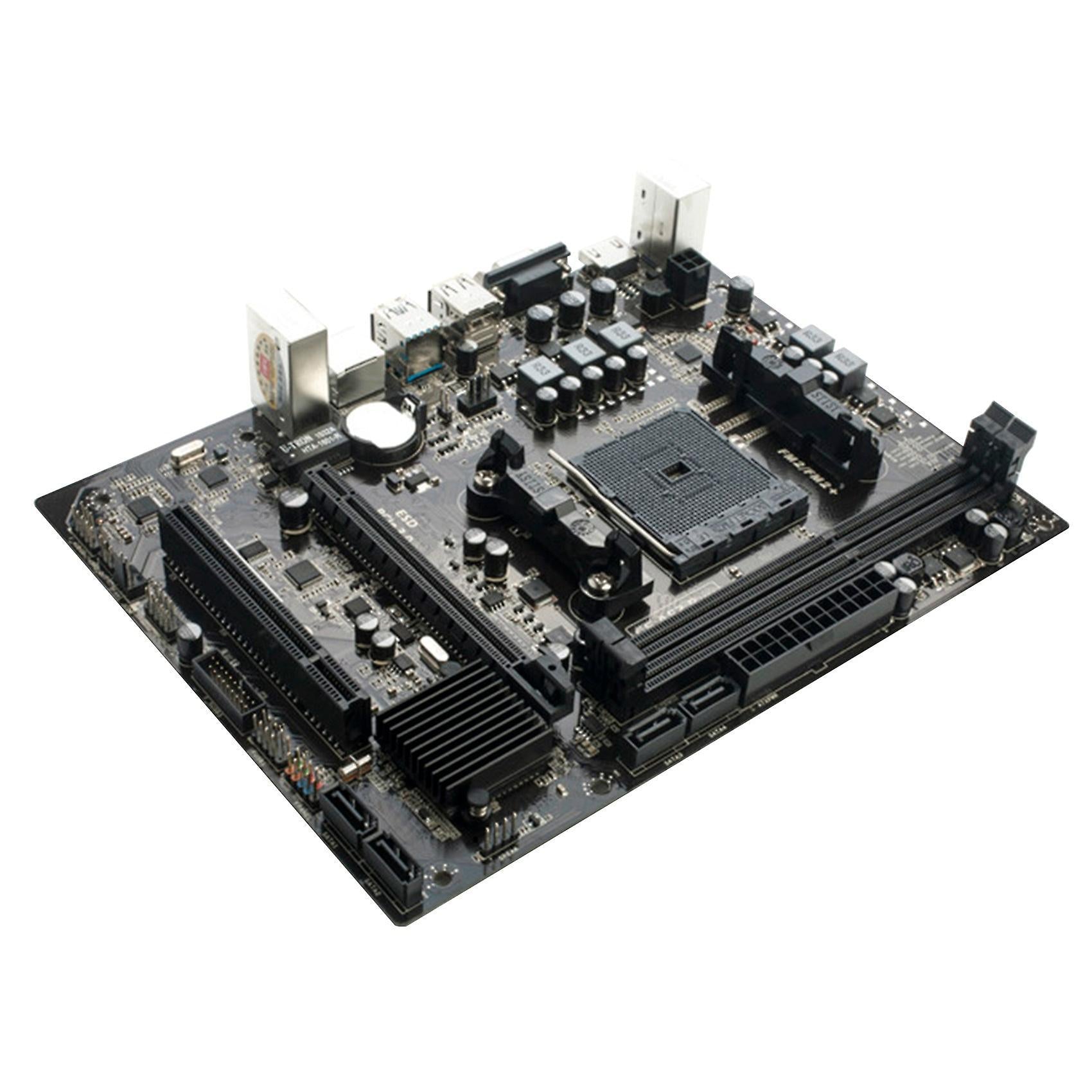

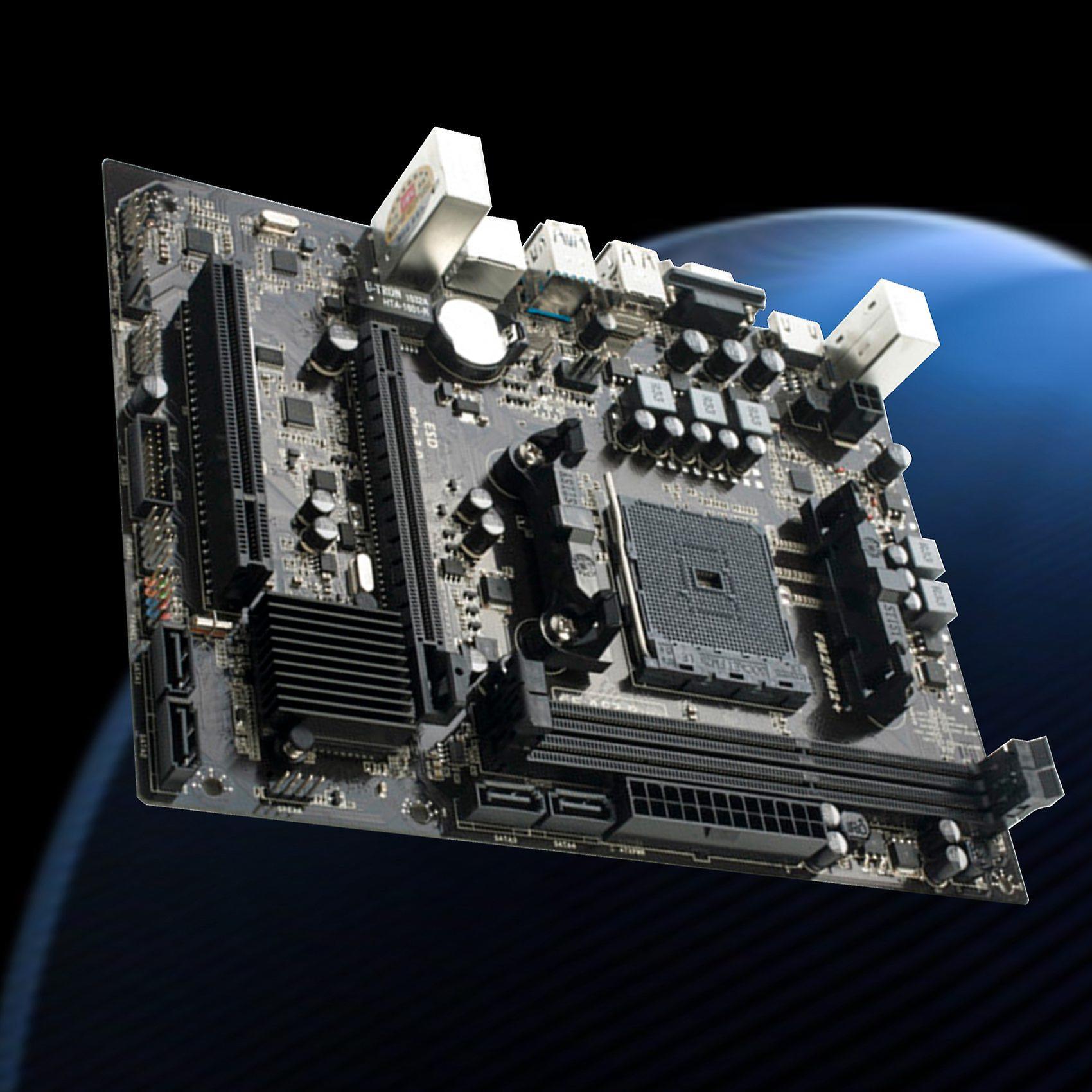

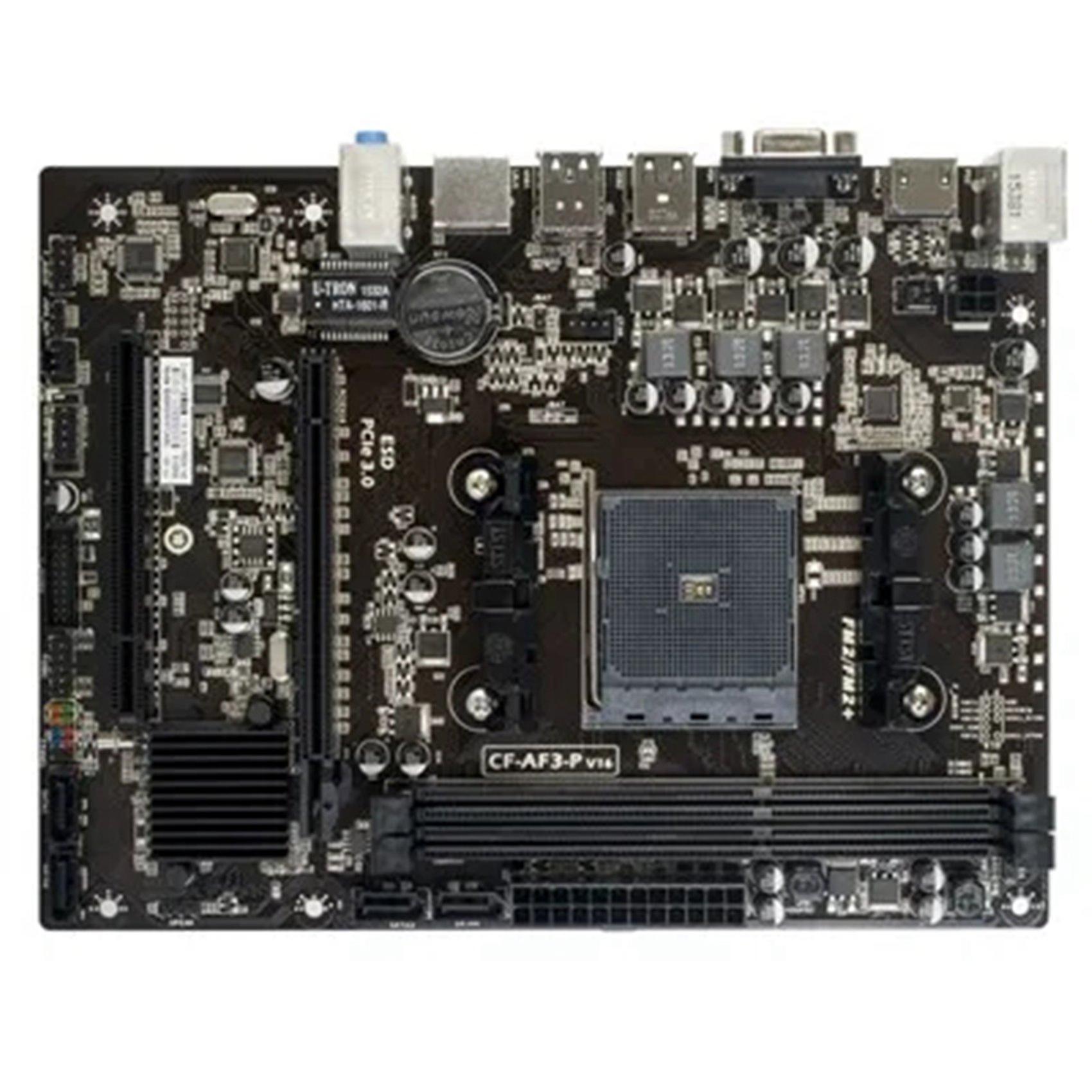

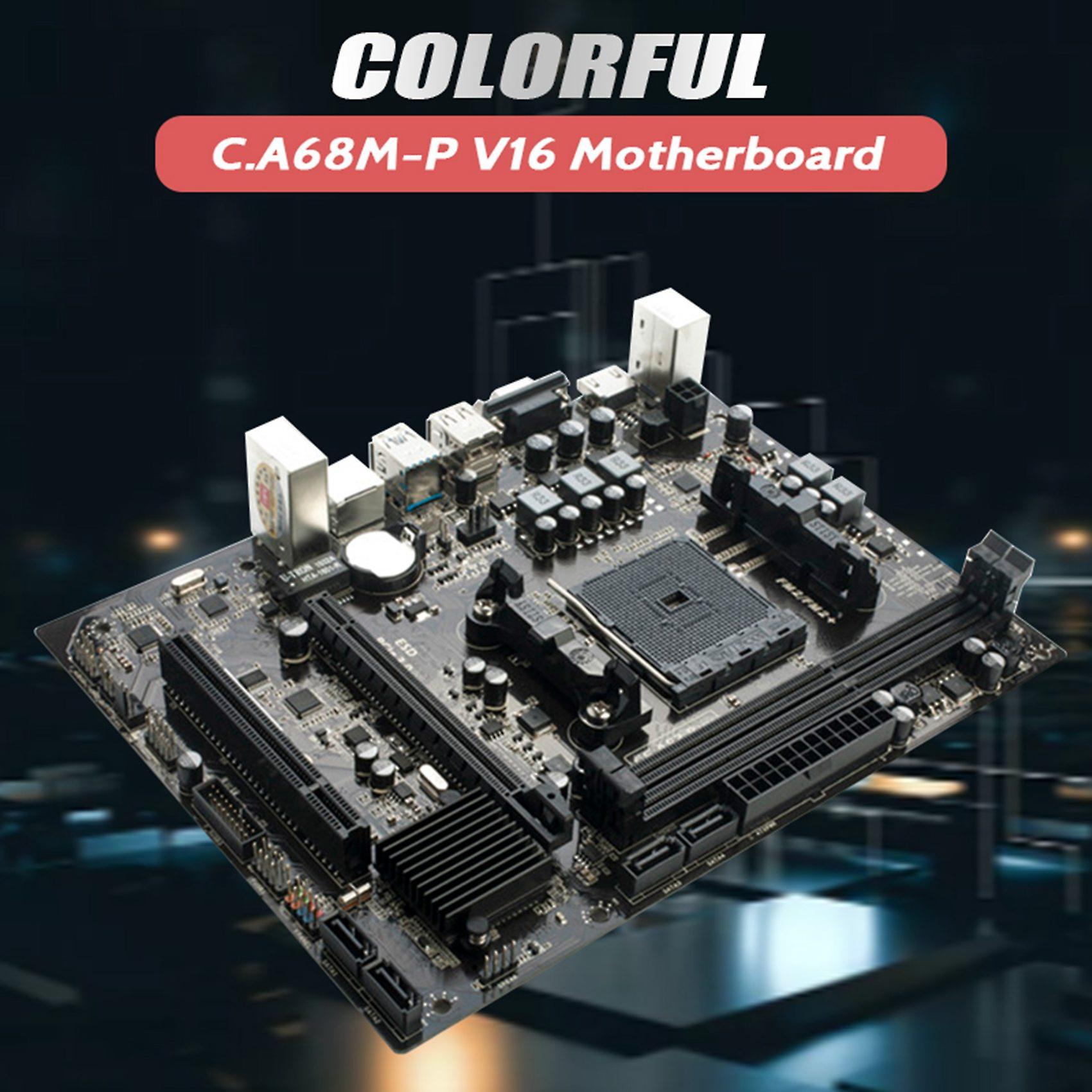

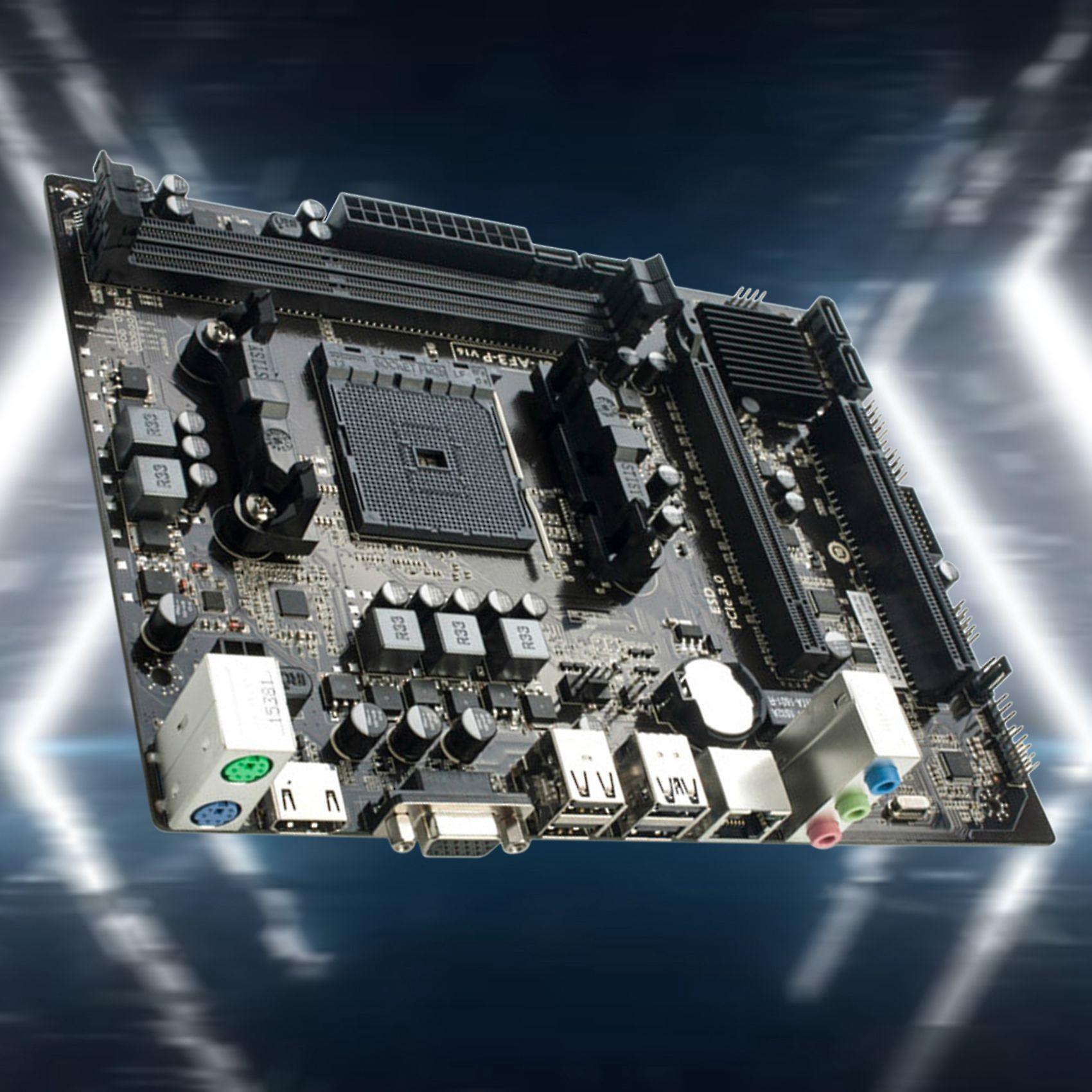

Colorful C.a68m-p Motherboard Support Hdmi-compatible+vga Motherboard

For AMD A68H chipsetCPU support: support FM2/FM2+ interface processor (TDP: 100W)Memory support: DDR3 1066/1333/1600/1866(OC)/2133(OC) MHzOnboard HDMI-compatible+VGA interfaceRTL8105E 100MMotherboard series: Smart motherboard, for AMD platform seriesGraphics card support: 1 PCIE2.0/3.0 X16 slot (to support PCIE3.0, you need to use FM2+ APU),Storage interface: 4 SATA3.0 6Gb/s hard disk interfaces, support RAID0, 1, 10, AHCIExpansion interface: 2 x PS2 mouse and keyboard interface; 1 x (HDMI-+VGA) interface; 4 x USB2.0 interface; 1 x RJ45 100M dual lightning-Pattern protection network interface; 3 audio input/output interfaces; expansion interface: 1 x 9pin USB2.0 interface; 1 x 19pin USB3 .0 interface; 1 set of 9-pin COM pinsExpansion slot: 1 PCIE2.0/3.0 X16 slot (to support PCIE3.0, you need to use FM2+ APU), 1 PCI slotSystem BIOS: 32M UEFIPower management: support S4, S5 wake-up, scheduled boot, call boot, support network S5 wake-upHardware monitoring: CPU fan speed controllable, SYSTEM fan speed monitoring, CPU temperature monitoring, and each group of voltage monitoringOnboard network card: RTL8105E 100MOnboard sound card: ALC662 6 channelsMotherboard specification: 170x225mm mATXOther functions; PXEDifferent batches, the appearance and color of the product may be different, which will not affect the usecolour: blackMaterial: PCBPackage Contents:1 x MotherboardOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
