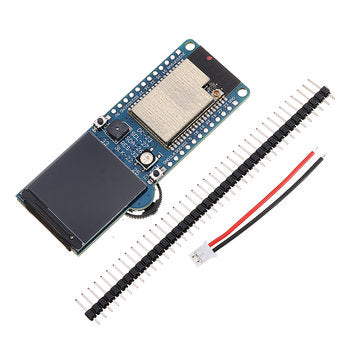

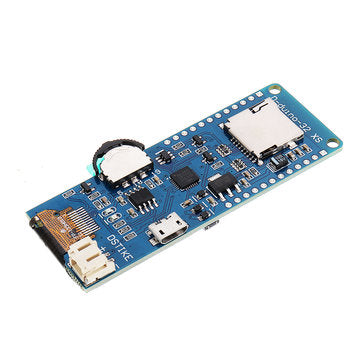

D-duino-32 XS ESP32 Development Board with TFT Color LCD

D-duino-32 XS ESP32 Development Board with TFT Color LCD

Regular price $629.00 USD
Regular price $1,048.33 USD Sale price $629.00 USD
Sale Sold out
GPIOs and hardware info: ? Display: ST7789 1.3 Screen Display SDA(MOSI): GPIO 26 Display SCL/SCK: GPIO 27 Display DC: GPIO 23 Display RST: GPIO32 Display Background LED : GPIO22 (Low will close BackGround) Resolution: 240*240 WS2812b LED: GPIO 25 Buzzer: GPIO33 Button Up: GPIO 19 Button Down: GPIO 5 Button Select: GPIO 18 ? SD card ? GPIO12--DAT2 GPIO13--DAT3 GPIO15--CMD GPIO14--CLK GPIO2--DAT0 GPIO4--DAT1 GPIO21--card ? What makes it special? ? 100mA power usage LM39100 Low Voltage Low-Dropout Regulator All GPIO breakouts and 3.3 and 5V output 2 LEDs to indicate battery charging status (Red:Charging,Green:Full) Protection: short, over charging, over discharging, temperature, reverse ESP32-Wrover inside(4MB Flash+4MB PSRAM) Auto download function integrated SD-card function integrated Passive buzzer and RGB LED ? Tutorial: ? 1. 2. 3. 4.Code Example ? Specs and Docs ? ? Package Included: ? 1 x DSTIKE D-duino-32 XS ESP32 Development Board?
