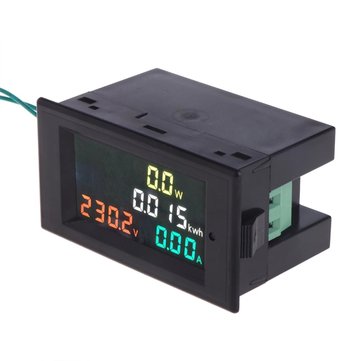

D69-2049 AC80-300V/AC200-450V Energy Meter Voltmeter Ammeter Power Energy Met... (MODEL: AC200-450V)

D69-2049 AC80-300V/AC200-450V Energy Meter Voltmeter Ammeter Power Energy Met... (MODEL: AC200-450V)

$583.00 USD
$971.67 USD $583.00 USD
Sale Sold out

SELECTED OPTION:
MODEL: AC200-450V

Description:

D69-2049 AC80.0-300.0V/AC200.0-450.0V Energy Meter Voltmeter Ammeter Power Energy Meter Volt Amp Power Kwh Meter

Attention: 1.The meter will be destroyed when you make wrong connection method with voltage input(green terminal) and secondary current transformer(blue terminal). 2.The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to measure square wave, output of inverter and correction sine wave.?
Features:

Auto-saving: when power off, the electric energy will be saved.? ? ?
The saved electric energy will be accumulated continue when the meter power-on next time.

Specifications:
? a?oAccuracy: 1%? 2words a?oAC voltage: AC 80.0-300.0V/AC200.0-450.0V a?oAC current: AC 0-99.99A a?oMinimum resolution : 0.01A.(Display 100.0A when the current is over 100A) a?oActive power: 0-45000W. resolution is 0.1W (< 0-9999.9W ), otherwise Minimum resolution is 1W.
a?oElectric energy: 0-9999999Kwh(0-9999.999kwh minimum resolution is 0.001kwh,10000.00-99999.99kwh minimum resolution is 0.01kwh,100000.0-999999.9kwh minimum resolution is 0.1kwh,The rest minimum resolution is 1Kwh.) a?oSpeed: 2 times per second

Package includes:

1 x?Energy Meter
1 x User Manual

Detail pictures:
?
