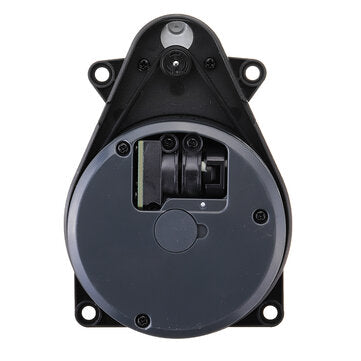

Dalata2A Laser Radar Scanner Lidar Sensor Detector Distance Detection Module 360 8meter 5000 time/

Overview: ? This product uses the principle of optical triangulation and combines wireless transmission and wireless communication technology to break through the life limit of traditional laser radar and achieve long-term reliable and stable operation. The Delat-2A Lidar can perform 360?￣ omni-directional scanning in the 8m radius of the 2D plane, sampling at frequencies up to 2 to 5KHz and generating flat point cloud map information in the space. These cloud map information can be used in practical applications such as map mapping, robot positioning navigation, and object/environment modeling. The Delata-2A Series Lidars typically have a rotational frequency of 4-10hz (360rpm) and can achieve angular resolutions of 0.3 to 0.8?￣ at typical rotational frequencies. The Delat-2A series of laser radars excel in a variety of indoor environments and outdoor environments where there is no direct sunlight; at the same time, each laser radar is rigorously tested at the factory to ensure that the laser power emitted is in compliance with FDA Class I Eye safety level ensures safety for humans and pets. ? Specifications: ? Range: 0.15m ~ 8m (reflectivity 80%) Sample sampling rate: 2~5k/s Scanning frequency : 4~10Hz Laser wavelength: 780nm Laser power : 3mW (maximum power) Measurement accuracy : < 1%@8m Measurement resolution : 0.25mm Angle resolution: 0.3~0.8?￣ Communication interface : UART (3.3V TTL) Rated power consumption : 2.5W Working voltage : DC 5V Motor drive : DC3.3V Starting current : 600mA Working current : 500mA Volume: ?|108mm*76mm*51mm Weight: 185&pm;2g Level: < 1?￣ Working temperature: 0 ~ 45 ?￣C Ambient light intensity: < 1000 lux Ambient humidity : < 90% ? Application: ? (Robot mapping SLAM obstacle avoidance) Delata-2A Series Lidar applications include, but are not limited to, the following areas: 1. Robot SLAM positioning and obstacle avoidance 2. Fast and accurate industrial mapping 3. Robot ROS development 4. Game interaction ? Package Included: ? 1 x Dalata2A Laser Radar Scanner Lidar Sensor Detector Distance Detection Module
