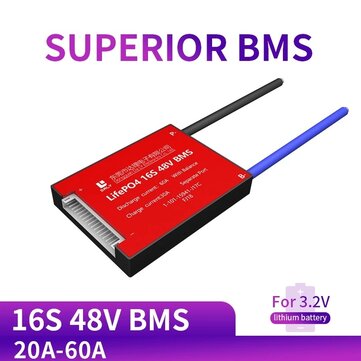

DALY BMS 16S 48V 20A 30A 40A 60A 3.2V Life Po4 18650 PCM Battery Protect... (TYPE: 60A48VCOMMONPORT)

DALY BMS 16S 48V 20A 30A 40A 60A 3.2V Life Po4 18650 PCM Battery Protect... (TYPE: 60A48VCOMMONPORT)

$979.00 USD
$1,631.67 USD $979.00 USD
Sale Sold out

SELECTED OPTION:
TYPE: 60A48VCOMMONPORT

??? Description:
Model: DL16S (3.2V Rated LiFePO4 Battery bms not for 3.7V rated Li-ION Battery bms) Common Version : common port for charge/discharge? Separate Version : separate port for charge/discharge We can customize any PCB from 1S to 30S lithium batteries with different current. For the same model, its charge current is less than discharge current because Daly PCBAs were updated to well protect customer battery.
Overview:
a??DL16S 48V 20A 30A 40A 50A 60A PCB is used for 16 series 48V lifepo4 battery pack. a??We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc. a??The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc. a??According to the customer request we can develop PCM in different sizes and structures. a??BMS manufactured by? high quality Mos and IC imported . Keep your battery long cycle serivce life time. ? Features:
a??Use top quality (A-level) protective integrated circuit IC, from the solution of? apan. a??Strong load ability, constant discharge current 20A 30A 40A 50A 60A, use high voltage resistance, low innerresistance power Mosfet. The heat sink will greatly help cooling. a??IC itself has power balancing function. The circuit is simple and reliable. a??Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load wona??t affect the PCB and the battery.Temperature protection during charging and discharging. a??Extreme low power consumption. The consumption of the whole device is less than 50uA. a??PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.
Specification:
Brand Name: DALY Model Number: DL16 SApplications: 3.2V lithium battery rated Battery series: 16S Over charge protection: Yes Over discharge voltage: Yes Short circuit protection: Yes Balance function: Yes Accessory Type: Battery Accessories Certification: CE/ FCC/RoHS/PSE
Package included:
1 x Battery Protection Board BMS?
