DANIU 40112302 Dial Test Indicator Precision Metric with Dovetail rails
DANIU 40112302 Dial Test Indicator Precision Metric with Dovetail rails
Regular price
$468.00 USD
Regular price
$780.00 USD
Sale price
$468.00 USD
Unit price
per
Couldn't load pickup availability
40112302 Dial Test Indicator Precision Metric with Dovetail rails, 0-0.8mm 32mm is available now from our? UK warehouse
Description :
40112302 Dial Test Indicator Precision Metric with Dovetail rails 0-0.8mm 32mm
Features :
Fowler inch/metric dial test indicator with yellow face is designed to measure surface variations in narrow or recessed areas
0-0.8mm measuring range, 0.0005/0.01mm graduations, 0-40-0 balanced inch readings, and 0.001mm balanced metric readings.
Auto-reversing contact point and adjustable bezel.
Three dovetail mounts for mounting indicator from the top, back, or front.
One-piece housing with satin chrome finish provides durability.
The 40112302 dial test indicator is designed for taking measurements in machining, layout, and inspection work.
Has microfine black graduations for 0-40-0 balanced inch readings and red graduations for 0.001mm balanced metric readings.

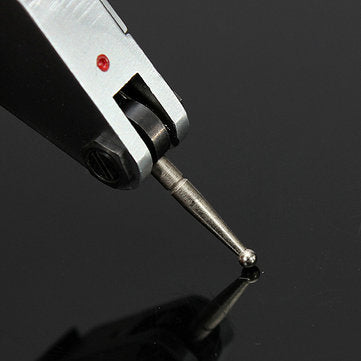

A movement and an auto-reversing contact point provide smooth action.
A knurled bezel rotates 360 degrees to zero the reading at any location.
Three dovetail mounts on the top, back, and front of the indicator provide a range of mounting options.
The one-piece housing and satin chrome finish provides durability.

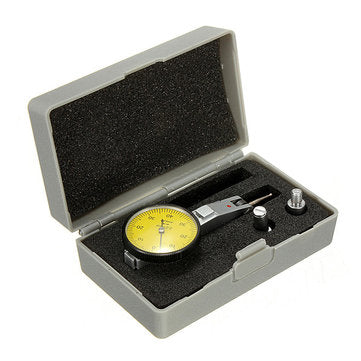

The 40112302 inch/metric dial test indicator includes one 3/8 and one 5/32 dovetail clamp and a molded case.
Dial readings with three digits, 0-40-0 for example, signify that the indicator has a balanced dial.
Dial readings with two digits, 0-100 for example, indicate the dial has a continuous dial.
Balanced dials are used for reading the difference from a specific surface reference point.
Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials.
Specifications :
Package included :
1 x 40112302 dial test indicator
1 x 3/8 dovetail clamp
1 x 5/32 dovetail clamp
1 x Molded case
Details pictures :
?
,
,
,
,
,
,
,
Description :
40112302 Dial Test Indicator Precision Metric with Dovetail rails 0-0.8mm 32mm
Features :
Fowler inch/metric dial test indicator with yellow face is designed to measure surface variations in narrow or recessed areas
0-0.8mm measuring range, 0.0005/0.01mm graduations, 0-40-0 balanced inch readings, and 0.001mm balanced metric readings.
Auto-reversing contact point and adjustable bezel.
Three dovetail mounts for mounting indicator from the top, back, or front.
One-piece housing with satin chrome finish provides durability.
The 40112302 dial test indicator is designed for taking measurements in machining, layout, and inspection work.
Has microfine black graduations for 0-40-0 balanced inch readings and red graduations for 0.001mm balanced metric readings.
A movement and an auto-reversing contact point provide smooth action.
A knurled bezel rotates 360 degrees to zero the reading at any location.
Three dovetail mounts on the top, back, and front of the indicator provide a range of mounting options.
The one-piece housing and satin chrome finish provides durability.
The 40112302 inch/metric dial test indicator includes one 3/8 and one 5/32 dovetail clamp and a molded case.
Dial readings with three digits, 0-40-0 for example, signify that the indicator has a balanced dial.
Dial readings with two digits, 0-100 for example, indicate the dial has a continuous dial.
Balanced dials are used for reading the difference from a specific surface reference point.
Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials.
Specifications :
| Face | 1-1/4?diameter?yellow?face |
| Dial?type?and?reading | 0-40-0?balanced?inch?and?0-.25-0?balanced?metric?readings |
| Range | 0-0.8mm |
| Graduations | 0.0005/0.01mm |
| Contact?point?length | 1/2 |
| Dovetail?clamps | 3/8?and?5/32 |
| Mounting?type | Dovetail |
Package included :
1 x 40112302 dial test indicator
1 x 3/8 dovetail clamp
1 x 5/32 dovetail clamp
1 x Molded case
Details pictures :
?
, , , , , , ,
