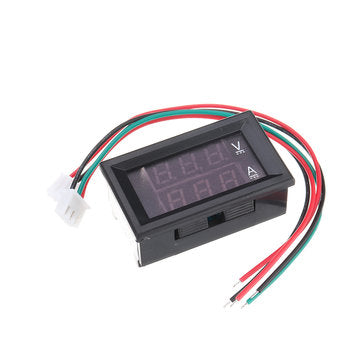

DC 0-200V 200A Digital Dual LED Voltmeter Ammete Voltage Current Panel Meter With 200A/75mV Shunt

Description:

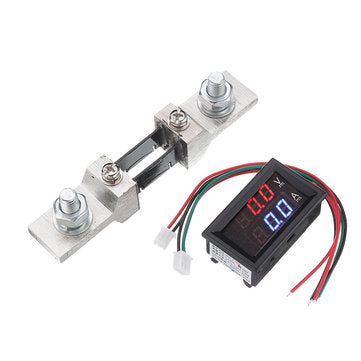

2 in 1 function Voltmeter Ammeter, Easy install. This meter test of Voltages and Amps, power supply can taken from the test circle, no additional power supply Power supply DC 4.5V - 30V range (Attention: The maximum of input voltage cannot be exceed of 30V, otherwise would be burnt) Display Range: DC 0V - 200V 0-500A (Please don't exceed the range) Measuring Range: DC 0V - 200V (Resolution: 1V) Current: 500A Resolution: 1A Display: 0.28 LED digital tube LED Color : Red Color on Voltmeter and Blue on Ampmeter Large, high-visibility Low Power Consumption Operating Current: less than 60mA Resolution ±1%+1 digit Measurement rate: a??? 500mS / times Operating Humidity: 10 to 80% (non-condensing) Operating temperature -10~65 Deg Operating Pressure: 80 ~ 106kPa Size: 48x29x21 mm Panel cutout 45.5x26.5 mm ? Package included: ? 1 x DC 0V-200V 200A Dual LED Digital Voltmeter Ammeter Voltage AMP Power Meter 1 x 200A/75mV Shunt
