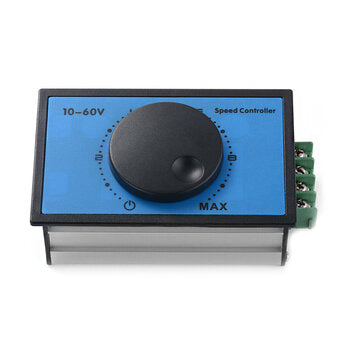

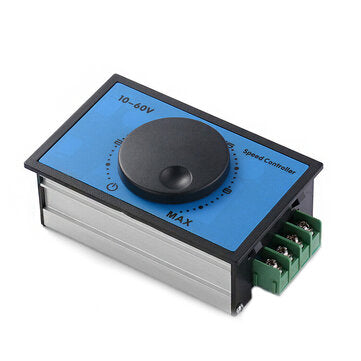

DC 10-60V 12V 24V 48V 20A PWM DC Motor Speed Controller Soft Start Switch TE1255 775 Motor

Feature:
- Soft start: Can solve the damage caused by instantaneous high current to speed controller - Blocking protection (20A current limited): Limit the high current produced by the blocking of the motor - Panel switch control, more easy to control the speed for the project
Specification:
Input voltage: DC 10-60A (The specific voltage must be the same as the rated voltage of the motor) Output voltage: Linear output under load Support motor: DC brush motor Output current: Max 20A (Limited value 20A) Continuous working current: within 18A Max power: 240W Regulating type: regulating current Regulating method: potentiometer (270?￣ linear) Regulating speed range: 0-100% Control frequency: 15KHZ Knob: 10K (with switch) Size: 95mm*60mm*32mm Panel mounting: 88mm*55mm
Package Included:
1 x DC 10-60V 20A PWM DC Motor Speed Controller
