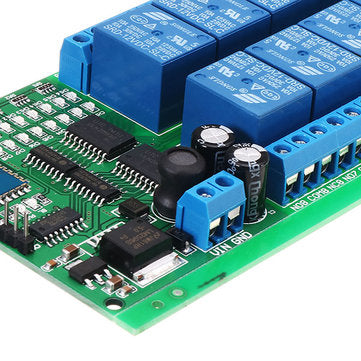

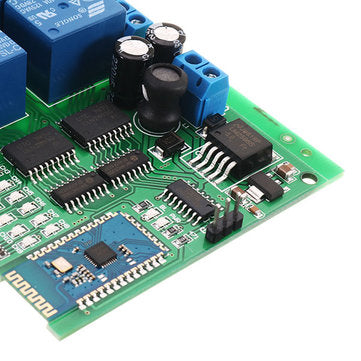

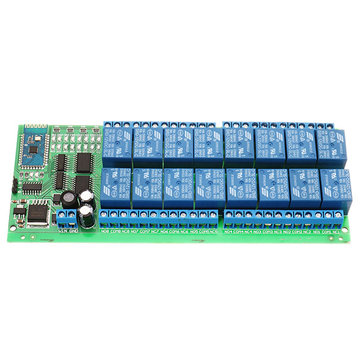

DC 12V 16 Channel bluetooth Relay Board Wireless Remote Control Switch For Android Phones With bluet

Features:
?
Operating Current: Standby current (all relays closed) 14MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA,
4 relays open 123MA, 5 relays open 150MA, 6 relays open 177MA, 7 relays open 203MA, 8 relays open 229MA, 16 relays open 480MA.
Send commands via Android bluetooth APP control relay turned on and off.
Momentary, Self-locking, Interlock, Open, Close, 5 Commands.
Maxmium remote distance is up to 10 meter.
Only suitable for android phones with bluetooth functions.


Specifications:?

bluetooth version: 2.1?
bluetooth password: 1234?
Control mode: Phone bluetooth / Relay switch?
Control port: 16 switches with normally open and close functions?
Control voltage: AC 85-265V 10A / DC 1-110V 10A?
Operating voltage: DC 12V?
Remote distance: Approx. 6-10meter(Different actual circumstances has different distance)?
Size: Approx. 175 x 65 x 18mm / 6.88 x 2.55 x 0.7inch?
Quantity: 1pc?
Weight: 225g?

Note:?
?
This bluetooth Relay is ONLY suitable for Android phones with bluetooth functions, NOT suitable for iPhones.

Package Included:?

1 x?DC 12V?16 Channel bluetooth Relay
