DC 12V 4-20mA 0-5V 0-10V Voltage Signal Acquisition RS485 Modbus RTU Module for PLC Current Transmit

Description:? ? 1: Operating Voltage : DC 8-25V(DC 9V 12V 15V 24V) 2: Operating Current : 10-14MA ?3: MODBUS RTU Command support 03 06 function code 4: V1(CH1) channel voltage measurement range is 0-5V, V2(CH2) channel voltage measurement range is 0-10V, C1/C2(CH3/4) channel current measurement range is 0-20MA/4-20MA 5: Voltage resolution is 0.01V, measurement accuracy is 1%; current resolution is 0.1MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated? 6 :MODBUS commands can be made serial HyperTerminal (serial assistant)? OR PLC Enter; 7 :Under the MODBUS command mode, it can support up to 247 devices in parallel 8 :Size: 45 * 30 * 15mm 9 :Weight: 11 g ? Application: ?? 4-20MA/0-20MA Sensor Voltage/Current analog acquisition Automated industry PLC Smart Home,Home Automation ; Identification system; RS485 Remote monitoring; Multimeter voltmeter Electronic Measuring Instruments
Package inlcuded:

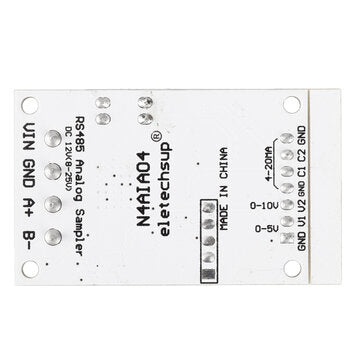

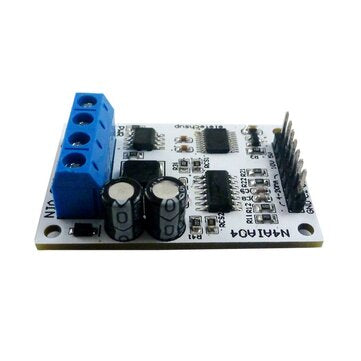

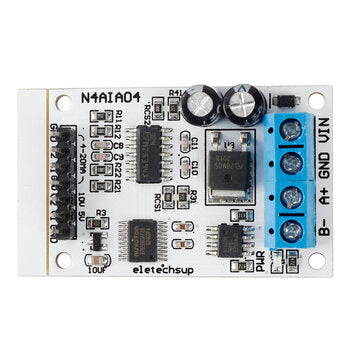

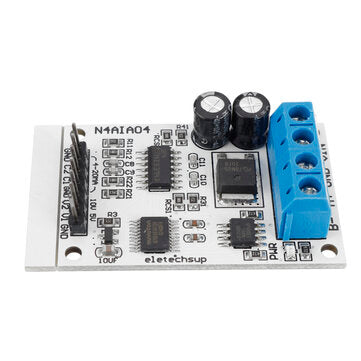

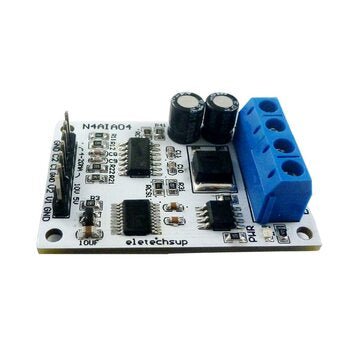

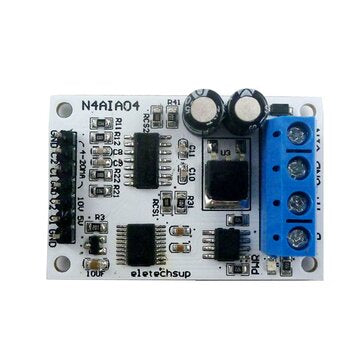

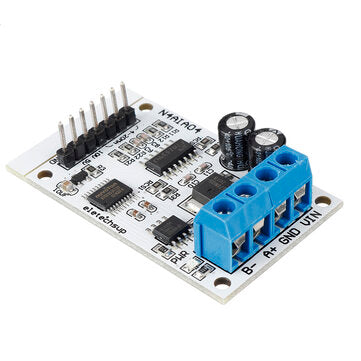

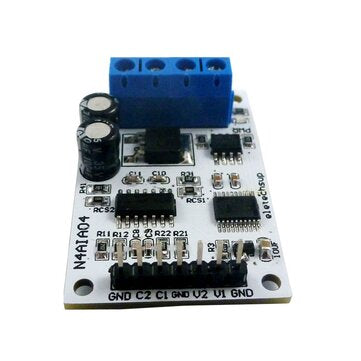

1 x N4AIA04 9V 12V 24V 4 Channel Voltage/Current analog acquisition RS485 module
