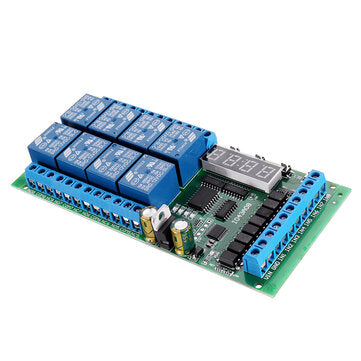

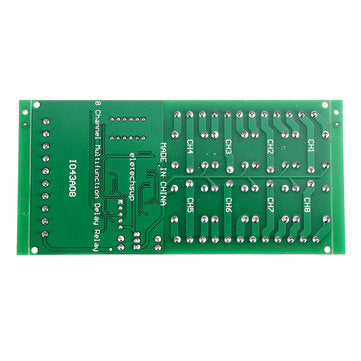

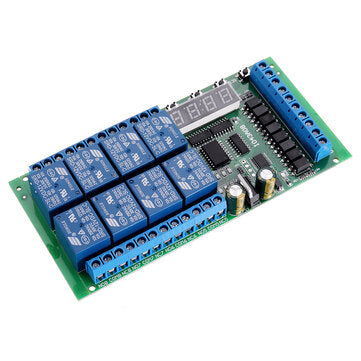

DC 12V 8 Channel Multifunction Timer Delay Relay Board Timing Loop Interlock Self-locking Momentary

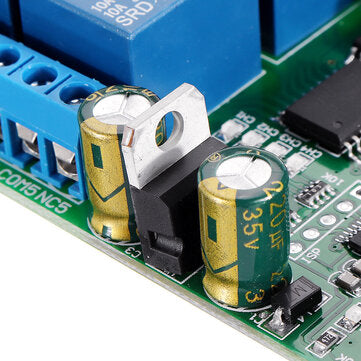

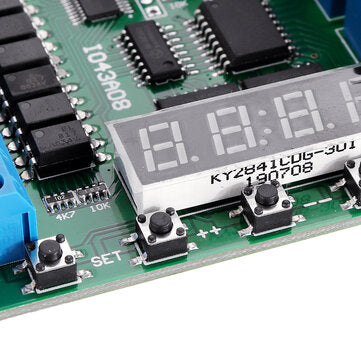

Features: ? ? ?? - Longest delay time : 00h:00m:01s - 99h:59m:59s? ?? - 8 channels relay,each channel independently triggered independent delay, do not interfere with each other. - 6 kinds of functional modules, each functional module has three sub-modes (no cycle, 2-99 cycle, always cycle).? ?? - Input optical isolation. - Power anti-reverse diode. - High Q value SMD electrolytic capacitors. - Parameter power-down save ?? Specifications: ? ?? Operating voltage: DC 12V Operating Current :? Standby current (power-saving status) 7mA, Standby current 48mA ,1 relay open 75mA, 2 relays open 102mA, 3 relays open 129mA, 4 relays open 160mA, 4 relays open 160mA,5 relays open 182mA, 6 relays open 207mA, 7 relays open 253mA, 8 relays open 258mA. Size: 120x62x20 mm Weight : 128g Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A

Typical Applications:
? 1. DC 12V control circuit,Wiring diagram below. LOAD may be LED lights, fans, toy car and other DC 12V equipment. ? ?? 2. DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. LOAD may be LED lights, fans, motors and other DC AC equipment. ? ? ? ? ? ? ? Package Included: ? 1 x DC 12V 8 Channel Multifunction Timer Delay Relay Board
