Description:

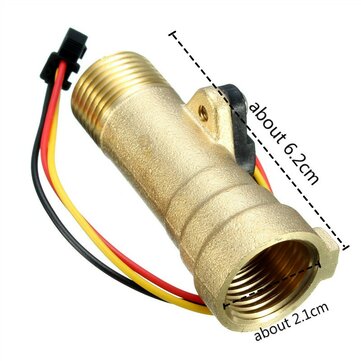

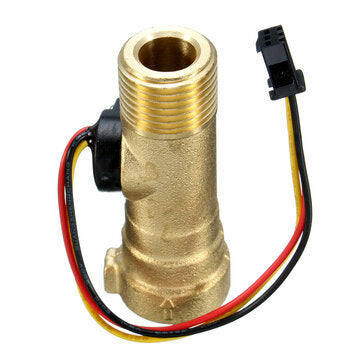

DC 5V Copper Water Heater Sensor Switch Flow Sensor
Specification:
Material: Copper Color: Brass
Range: 1-30L/min Working voltage: DC3-18V Rated voltage: DC5V Output voltage(rated: DC 5V); High level 5V and above,low level 0.5V and below Pulse output duty cycle: 50+-10% Insulation resistance: 100M Ohm and above
Calculation Formula: [8.1Q-3]±10%, F is pulse value(HZ), Q is flow (L/min) ? Features:
1. Make of Copper material, environmental friendly material, small, flexible and functional. 2. Intubation design of inlet and outlet pipe, easy connection and operation.
3.For the sense of the water flow rate on the following equipments: Thermostatic water heater, water purifier,water dispenser, smart card equipment, coffee machine etc.
Note: 1. When magnetic material is close with the sensor, its characteristics may vary. 2. In order to avoid particle debris, the sensor must be installed after a filter. 3. The flow sensor installation has to avoidstrong vibration and shaking of the environment,so as not to affect the sensor's measurement accuracy.
Package Included:
1 x Flow Meters
More Details:
DC 5V Copper Water Heater Sensor Switch Flow Sensor
Specification:
Material: Copper Color: Brass
Range: 1-30L/min Working voltage: DC3-18V Rated voltage: DC5V Output voltage(rated: DC 5V); High level 5V and above,low level 0.5V and below Pulse output duty cycle: 50+-10% Insulation resistance: 100M Ohm and above
Calculation Formula: [8.1Q-3]±10%, F is pulse value(HZ), Q is flow (L/min) ? Features:
1. Make of Copper material, environmental friendly material, small, flexible and functional. 2. Intubation design of inlet and outlet pipe, easy connection and operation.
3.For the sense of the water flow rate on the following equipments: Thermostatic water heater, water purifier,water dispenser, smart card equipment, coffee machine etc.
Note: 1. When magnetic material is close with the sensor, its characteristics may vary. 2. In order to avoid particle debris, the sensor must be installed after a filter. 3. The flow sensor installation has to avoidstrong vibration and shaking of the environment,so as not to affect the sensor's measurement accuracy.
Package Included:
1 x Flow Meters
