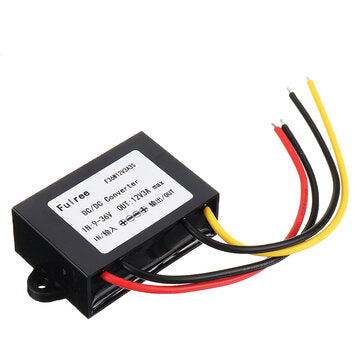

DC 9-36V to 12V 1A 2A 3A DC DC Converter 12V DC Voltage Converter Step Down Buck C... (CURRENT: 3A)

Product Name

9-36V to 12V 1A/2A/3A DC Converter

Brand Name

Fulree

Model No.

FJ60D12C1/FJ60D12C2/FJ60D12C3

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input (cable length: 12cm)

Input Voltage

36V

Input?Voltage Range

DC 9-36V

Output(cable length: 12cm)

Output Voltage

DC 12V

Output Current

1A/2A/3A Max

Output Power

12W/24W/36W Max

?Conversion Efficiency

>93%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load?current

<100mA

Working Temperature

-40~80a??( If ambient temperature exceeds 40?￣c, lower power use, or to enhance heat dissipation)

Waterproof Rating

IP68

Protection

Over-current protection / Over heat protection / Short circuit protection / Waterproof IP68 design, Anti-shock protection

Application

mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on.

?Case Material

ABS?Plastic

?Product Size (L x W x H)

46*27*14mm

Product Weight

30g

Warranty

12 months

Cooling Way

Free air convection

OEM Service

?Acceptable
