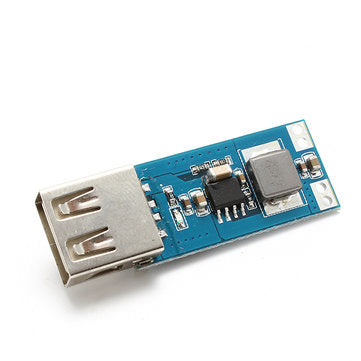

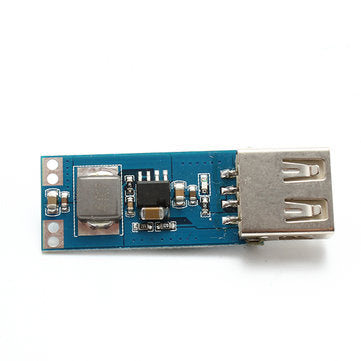

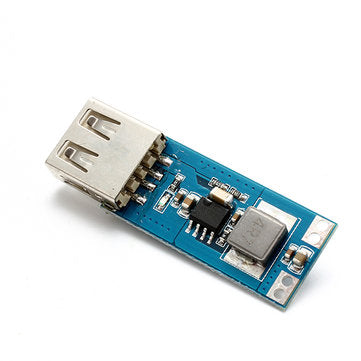

DC-DC Boost Step Up Module 2.5V-5.5V Input 5V/2A Output
DC-DC Boost Step Up Module 2.5V-5.5V Input 5V/2A Output
Regular price
$379.00 USD
Regular price
$631.67 USD
Sale price
$379.00 USD
Unit price
per
Couldn't load pickup availability
Features:
High performance synchronous rectification IC
With temperature protection, overcurrent protection, short circuit protection, low voltage low current output protection function
Input: 2.5V (MIN) ~ 5.5V (MAX)
Output: 5V / 2A ± 5% (MAX) support 1.5A long-distance running
Efficiency: 92%
Product size: L42mm * W15mm * H5mm
Working temperature: -40a?? ~ 85a??
Storage temperature: -55a?? ~ 150a??
Switching frequency: 1MHZ
Static power consumption: 80uA
Work indication: Blue LED on when output is 5V
Application: to charge mobile phones and other digital devices, can also be used as power supply voltage regulator
Package included:
1 x Step Up Module
High performance synchronous rectification IC
With temperature protection, overcurrent protection, short circuit protection, low voltage low current output protection function
Input: 2.5V (MIN) ~ 5.5V (MAX)
Output: 5V / 2A ± 5% (MAX) support 1.5A long-distance running
Efficiency: 92%
Product size: L42mm * W15mm * H5mm
Working temperature: -40a?? ~ 85a??
Storage temperature: -55a?? ~ 150a??
Switching frequency: 1MHZ
Static power consumption: 80uA
Work indication: Blue LED on when output is 5V
Application: to charge mobile phones and other digital devices, can also be used as power supply voltage regulator
Package included:
1 x Step Up Module
