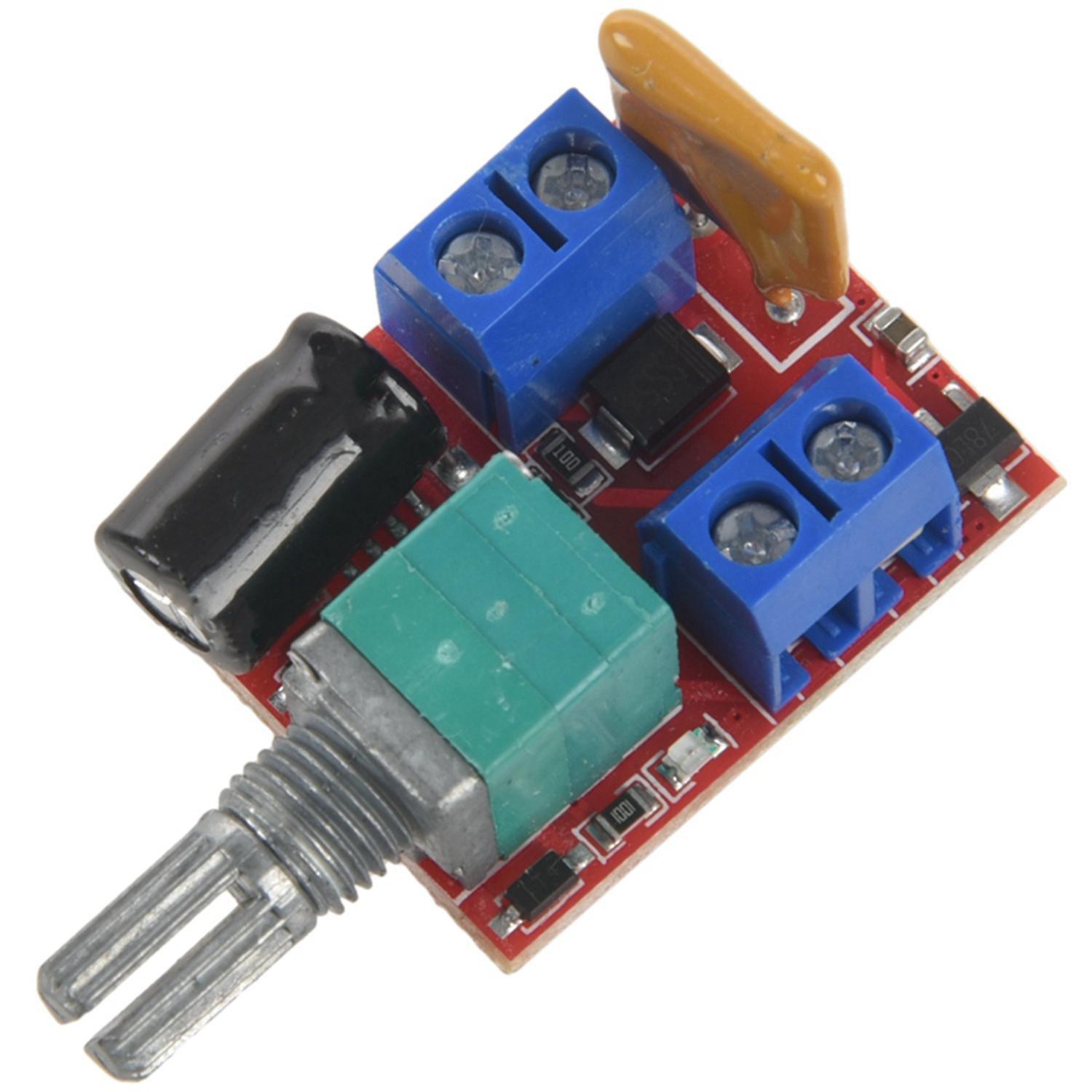

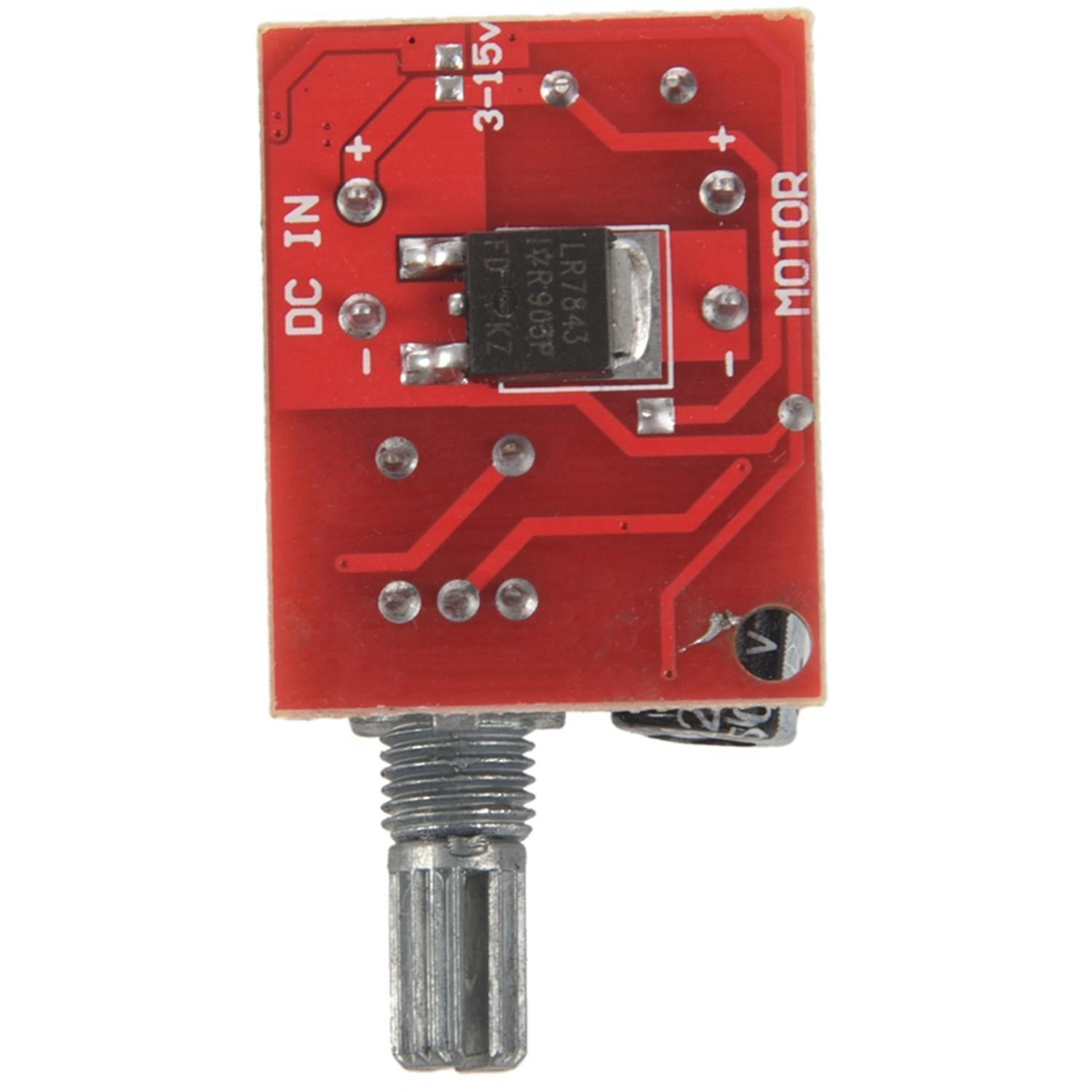

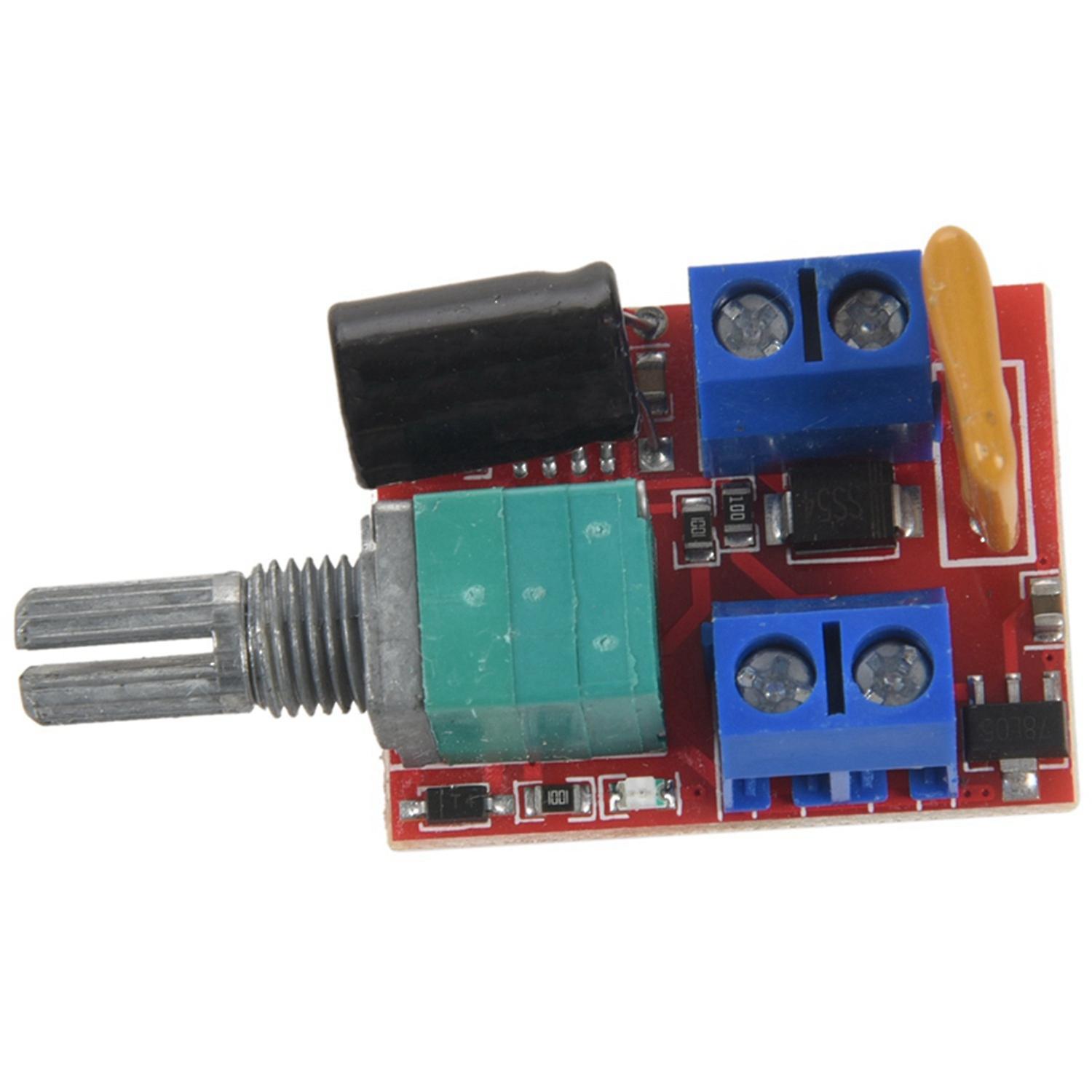

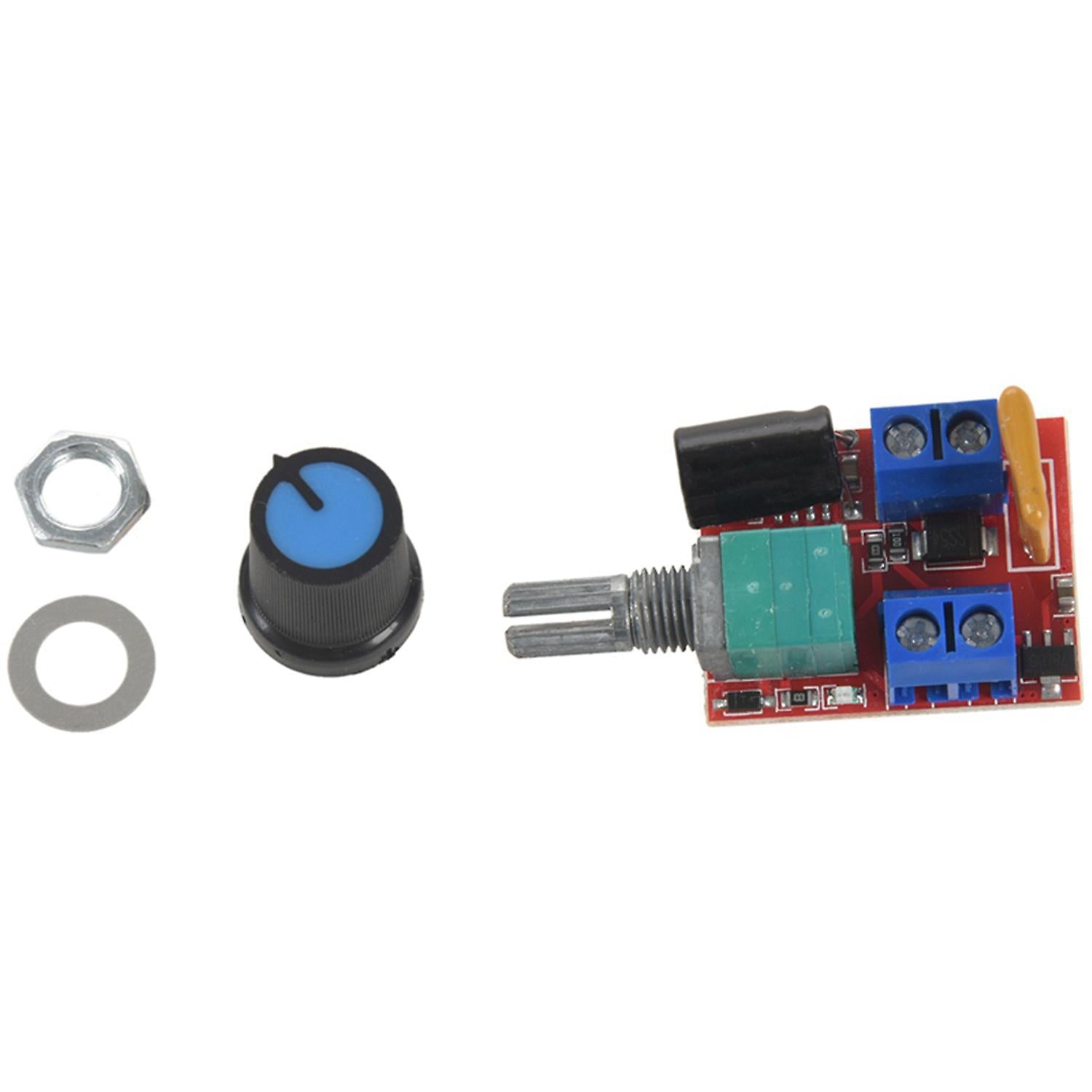

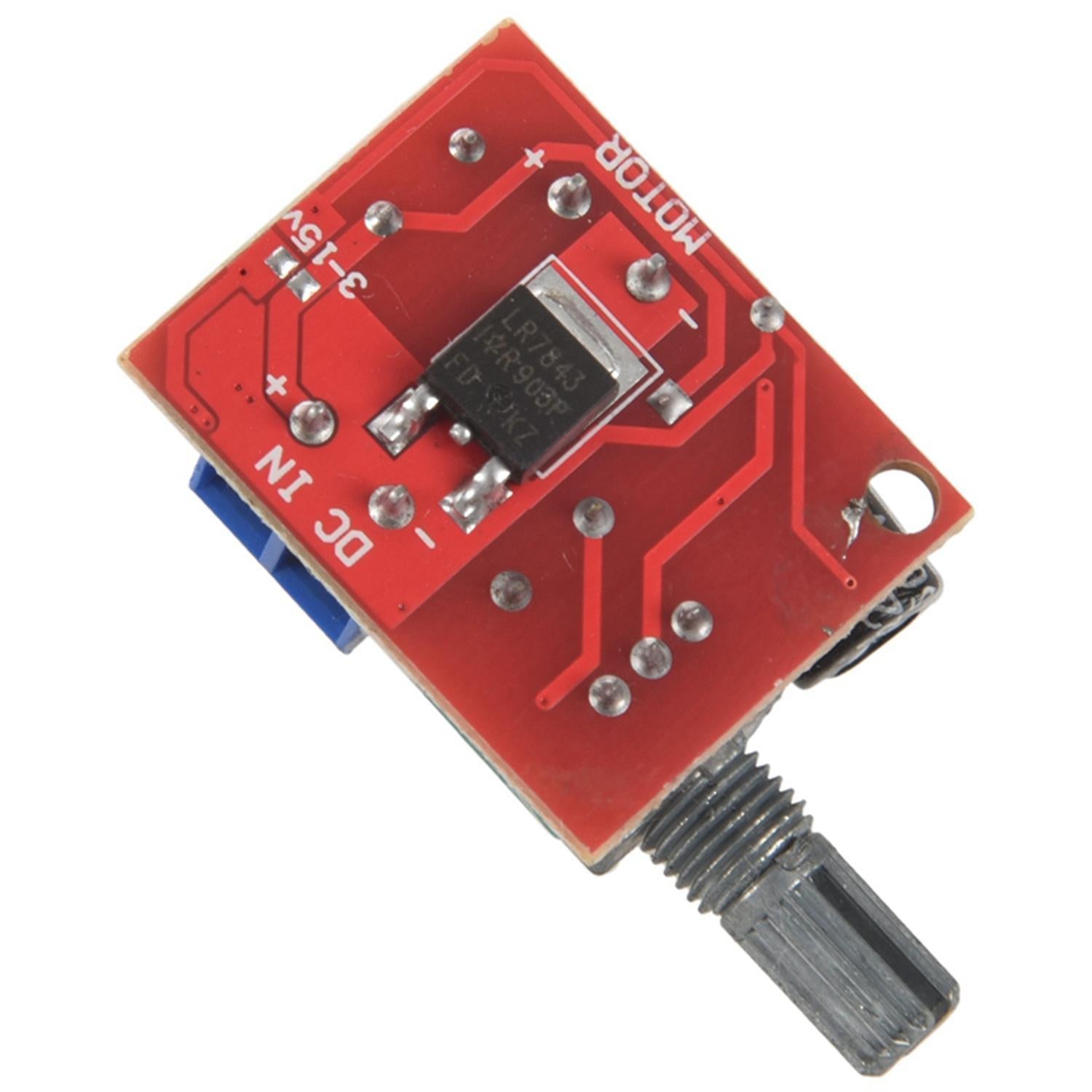

Number of Items 1Part Number JT0784Wide voltage DC motor speed controller, But also applies to LED dimmingBy screwing the potentiometer, you can turn off power supply outputHigh voltage and high current resettable fuse, overcurrent automatic disconnection, power off for cooling for a few seconds fuses automatic recoveryOperating voltage: DC3V-35V Control power: Maximum 90W Quiescent current: 0.01A(Standby) PWM duty cycle: 1%-100% PWM frequency: 10khz Model: ZS-X4 Net weight: 0.015KG Input voltage selection is divided into two stalls. Intermediate short contact and 3-15V short contact to connect to low voltage 3-15V input, intermediate and short contact 5-35V to connect to high voltage 5-35V. Colour:redMaterial:plasticsize:30MM*24MM(Without handle) total height is 15MM Package Contents: 1 x PWM Speed ControllerNote: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
