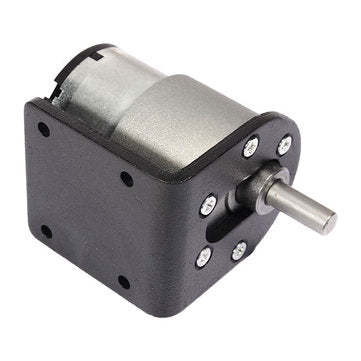

DC12.0V 85rpm Mini Gear Motor Electric Gear Box Motor

Description:
DC12.0V 85rpm Mini Gear Motor Electric Gear Box Motor

Specification:
Material:?Iron+ steel+ nylon
Voltage: 12.0V?
No-load Speed: 85rpm

1. ?Standard Operating Conditions

Item	Specification	Test Method
Rated Voltage	DC 12.0V	Multimeter
Gear Ratio	1/86	?
Rotation	CW	Handle
Motor Position	All position in horizontal	Handle
Temperature	0 - 30 Degree Celsius	Thermometer
Humidity	30% - 95%	Hygroscope

2. Performacnce of Motor

Item	Specification	Test Method
No-load Speed	7500 +/- 10%rpm	Flash Speed Indicator
No-load Current	55mA (Max)	DC Power Supply
Stall Current?	1500mA?(Max)	DC Power Supply
Stall Torque	190g.cm	Torque Measure

3. Performance of Gear Motor

tem	Specification	Test Method
Output Speed	85?+/- 10%rpm	Flash Speed Indicator
No-load Current	100mA?(Max)	DC Power Supply
Stall Current?	1500mA?(Max)	DC Power Supply
Stall Torque	14kg.cm	Torque Measure
Rated Torque	2500g.cm	Torque Measure
Rated Current	300mA?(Max)	DC Power Supply
Rated Speed	72+/- 10%rpm	Flash Speed Indicator
Noise ?	52dB	Digital Sound Levd Meter

4. Dimension

tem	Specification	Test Method
The outside Shaft Length	21mm	Vernier Calipers
Shaft End Play	0.05 - 0.50mm	Frock
Screw Size	M3.0 (Allow the depth 3mm)	Frock
Diameter of Shaft	6 x 12mm	Vernier Calipers
Outline Mounting Dimension	Refer to the outline Drawing	Callipe

5. Product Drawing?



Bracket Drawing

?



Curve Drawing



Package Included:
1 x Gear Motor
1 x Bracket
