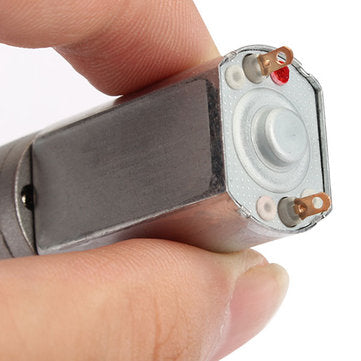

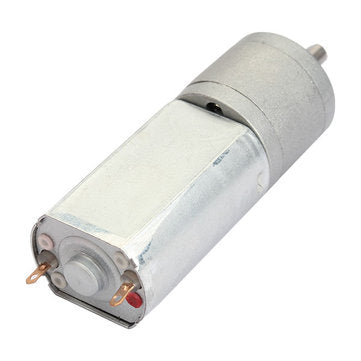

DC12V 100RPM Mini Metal Gear Motor Electric Gear Box Motor

Description:
DC12V 100RPM Mini Metal Gear Motor Electric Gear Box Motor

Specification:
Voltage: DC12.0V No-load speed: 100RPM Shaft diameter: 4mm Axial length: 10.5mm

1. Standard Operating Conditions

Item ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?	Specification
Rated Voltage	DC 12.0V
Gear Ratio	1/100
Rotation	CW & CCW
Motor Position	All position in horizontal
Temperature	0 - 30 Degree Celsius
Humidity ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?	30% - 95%

2. Performance of ?Motor

Item	Specification
No-load Speed	10000 +/- 10%rpm
No-load Current	95mA (Max)
Stall Current	1600mA (Max)
Stall Torque ? ? ? ? ? ? ??	100g.cm

3. Performance of Gear Motor

Item	Specification
Outer Speed?	100 +/-?10%rpm
No-load Current	130mA (Max)
Stall Current	1600mA (Max)
Stall Torque	6.0kg.cm
Rated Torque	1000g.cm
Rated Current	280mA (Max)
Rated Speed ? ? ? ?	85?+/-?10%rpm
Noise ? ? ?	52dB

4. Dimension

Item ? ? ? ? ? ? ?	Specification
The Outside Shafft Length ? ? ? ? ?	10.5mm
Shaft End Play	0.05 - 0.50mm
Screw Size?	M2.5
Diameter of Shaft?	4 x 3.5mm
Outline Mounting Dimension	Refer to the Outline Drawing

5. Product ?Drawings
?

6. Curve?Drawings




Package Included:
1 x Motor
