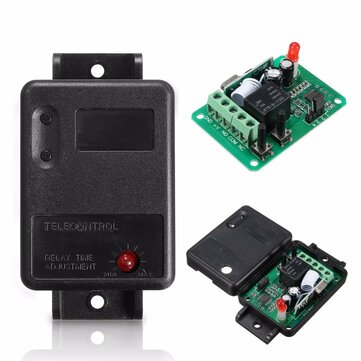

DC12V 1CH 315/433MHz Wireless Time Delay Relay RF Remote Control Switch Receiver (TYPE: 433MHZ)

DC12V 1CH 315/433MHz Wireless Time Delay Relay RF Remote Control Switch Receiver (TYPE: 433MHZ)

$440.00 USD
$733.33 USD $440.00 USD
Sale Sold out

SELECTED OPTION:
TYPE: 433MHZ

Instructions:
? Working/output way:
1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON,press another button is stop/OFF. One channel switch need 2 buttons remote control.

Learning :
1. Press the B key once,the LED will go off, press the button of the remote control, the LED of the control panel will blink three times in succession to learn the code successfully.

Operating Mode Description:
1. Set the jog output: Unplug the jumper cap
2. Set to self-lock output: use the short jumper pin on the board to connect 1-2 with the middle pin.
3. Set the interlock output: Connect the 3-4 pin to the middle pin with the jumper cap short pin on the board.

Delay settings:
1, press the button A key once, then press the learning code B key,press once to set the delay time of one second, press the second time to set the delay of two seconds, three times for the set delay time of three seconds, After the completion of the control panel by pressing the A key to confirm the delay time off, this time whether it is jog or self-locking, interlock status is the delay off function.
2, the delay control panel can be set free 1-99 seconds, according to your own needs.

Clear :
Press the learning button on the control panel B key does not let go until the LED indicator flashes to complete, that is automatically clear all the code to learn the remote control. ? Specification :

1.Input Voltage: DC12V
2.RF Frequency: 315/433MHZ
3.RF Working mode:Super heterodyne receiver
4.Receiver Sensitivity: -107dBm
5.Remote Control Distance: >100 meter(In open environment)
6.Modulation: ASK
7.Load power: 800W
8.Support remote control type: learning code
9.Channel: 1CH
10.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched , Delay)
11.Wiring Method:Fixed wiring terminal
12.Box dimension:6cm*4.5cm*2cm ? Package Includes :

1 x12V 1 Channel Wireless Relay Switch ? Details Pictures :













?
