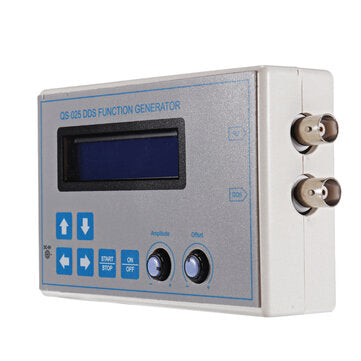

DC9V DDS Function Signal Generator Sine Square Triangle Sawtooth Low Frequency LCD Display USB Cable
DC9V DDS Function Signal Generator Sine Square Triangle Sawtooth Low Frequency LCD Display USB Cable
Regular price
$740.00 USD
Regular price
$1,233.33 USD
Sale price
$740.00 USD
Unit price
per
Couldn't load pickup availability
Features:
Portable --- Small size, powered by DC 9V, easy and portable for use. DDS frequency range --- 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz. Adjustable --- DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers. Wide DDS signals --- sine ve, square, sawtooth, reverse sawtooth, triangle, the ECG, and noise. Easy Use --- LCD display for clear reading, intuitive touch buttons. The power automatically restores the last used configuration.
Function:
UP output waveform select DOWN output waveform select LEFT output frequency - RIGHT output frequency + STOP / START the output stop / start
UP key waveforms order:
ECG = electrocardiogram (in the OFF state, the left and right keys to set the output frequency. Middle button start, all of the following waveform set) Rev Sawtooth = reverse sawtooth SawTooth = sawtooth Triangle = triangle? Square = square?
Specifications:

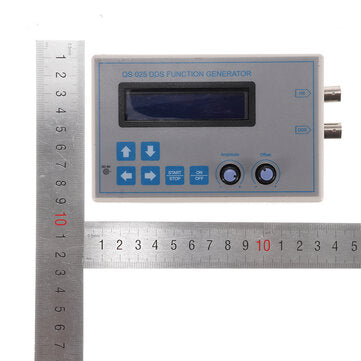

Material: ABS Display: 1602 LCD Operating Voltage: DC 9V DDS Frequency Range: 1Hz-65534Hz Frequency(HS) Output: up to 8MHz Section into the Value: 1, 10 , 100, 1000, 10000 Hz Offset: 0.5pp-5Vpp Amplitude Amount: 0.5Vpp-14Vpp Power Cable Length: Approx. 70cm / 27.56in Item Size: 135*80*32mm / 5.3*3.15*1.26in Item Weight: 198g / 6.98oz Package Weight: 203g / 7.16oz Package Size: 135*80*32mm / 5.3*3.15*1.26in
Package includes:
1 x DDS Function Signal Generator 1 x Power Cable
Portable --- Small size, powered by DC 9V, easy and portable for use. DDS frequency range --- 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz. Adjustable --- DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers. Wide DDS signals --- sine ve, square, sawtooth, reverse sawtooth, triangle, the ECG, and noise. Easy Use --- LCD display for clear reading, intuitive touch buttons. The power automatically restores the last used configuration.
Function:
UP output waveform select DOWN output waveform select LEFT output frequency - RIGHT output frequency + STOP / START the output stop / start
UP key waveforms order:
ECG = electrocardiogram (in the OFF state, the left and right keys to set the output frequency. Middle button start, all of the following waveform set) Rev Sawtooth = reverse sawtooth SawTooth = sawtooth Triangle = triangle? Square = square?
Specifications:
Material: ABS Display: 1602 LCD Operating Voltage: DC 9V DDS Frequency Range: 1Hz-65534Hz Frequency(HS) Output: up to 8MHz Section into the Value: 1, 10 , 100, 1000, 10000 Hz Offset: 0.5pp-5Vpp Amplitude Amount: 0.5Vpp-14Vpp Power Cable Length: Approx. 70cm / 27.56in Item Size: 135*80*32mm / 5.3*3.15*1.26in Item Weight: 198g / 6.98oz Package Weight: 203g / 7.16oz Package Size: 135*80*32mm / 5.3*3.15*1.26in
Package includes:
1 x DDS Function Signal Generator 1 x Power Cable
