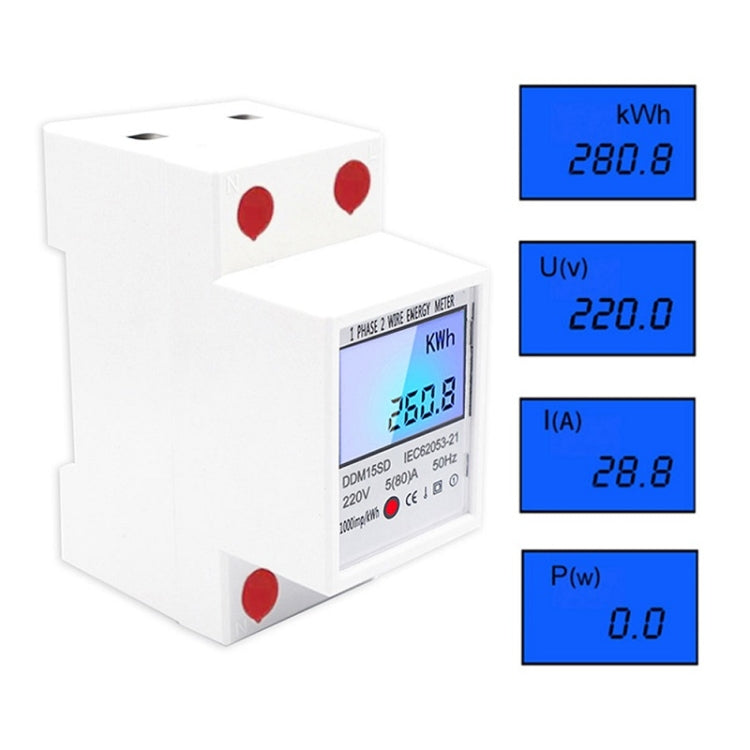

DDM15SD 5 (32) A Single-phase Multi-function Rail Meter with Backlight LCD Display

1. Material: plastic 2. Accuracy: Level 1 3. Voltage: 220V/230V, 50/60Hz 4. Insulation performance: 1min 4KV AC voltage, 1.2/50us 6KV waveform impulse voltage 5. Display: LCD backlight 6. Installation: 35mm DIN rail 7. Wiring mode: top out and bottom in / top in and bottom out 8. LCD backlight display, easy to read 9. Can display power, voltage, current, frequency, power 10. Recessed end caps ensure safe power supply 11. Accurate and reliable measurement of electrical energy 12. Good anti-electromagnetic interference and stable performance 13. 35mm DIN complies with DIN EN50022 14. 17.5mm wide, in line with DIN43880 standard 15. Weight: 0.069 grams
