Deep Notch Ball Bearings 6000-6005/2RS High Speed Bearing Steel (SIZE: 6003)
Deep Notch Ball Bearings 6000-6005/2RS High Speed Bearing Steel (SIZE: 6003)
Regular price
$312.00 USD
Regular price
$520.00 USD
Sale price
$312.00 USD
Unit price
per
Couldn't load pickup availability
SELECTED OPTION:
SIZE: 6003
Description:

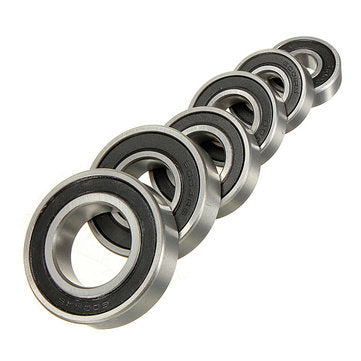

Deep Notch Ball Bearings 6000-6005/2RS High Speed Bearing Steel
Specification:
Type: Deep Notch ball bearings (high-speed electric tool,? motor wire cutting? dedicated)
Rolling Block material: Bearing steel
Size:
| Size | Inner Diameter(mm) | Outer Diameter(mm) | Thickness(mm) | Weight(g) |
| 6000 | 10 | 26 | 8 | 19 |
| 6001 | 12 | 28 | 8 | 20 |
| 6002 | 15 | 32 | 9 | 30 |
| 6003 | 17 | 35 | 10 | 40 |
| 6004 | 20 | 42 | 12 | 68 |
| 6005 | 25 | 47 | 12 | 79 |
Working principle:
Deep notch ball bearings mainly take radial load, but also can? support radial and axial load. When the only radial loads, the contact angle is zero.
When the deep notch ball bearings with a larger radial clearance, with angular contact bearings can bear large axial load, deep notch ball bearing friction coefficient is small, the speed limit is also high.
Package included:
1x? Deep notch ball bearing
