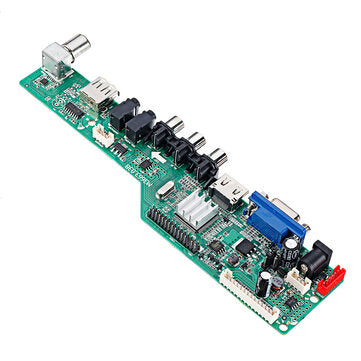

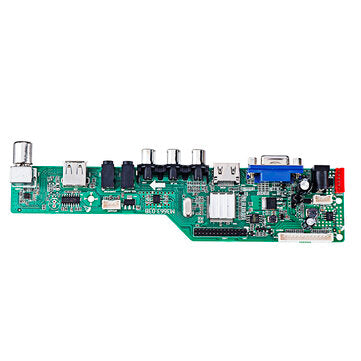

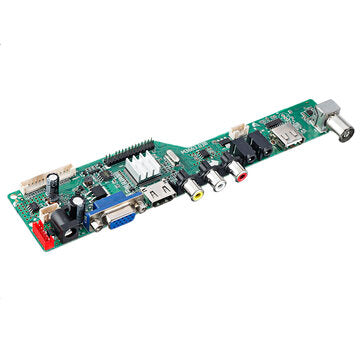

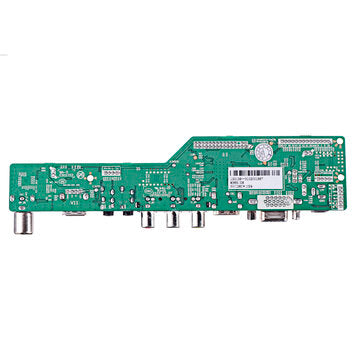

Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu

Note:?M3663.03B?is not support Dolby Audio AC3 function.
Feature:
1. M3663.03B is a multi-purpose and energy-efficient LCD TV control board with single/dual 8bit LVDS interface, the resolution of LCDTV panel is up to 1920*1080. 2. M3663.03B supports DVB-T2/DVB-T/DVB-C and analog TV front-end (PAL/SECAM/NTSC) demodulator. HDMI, USB , PC-RGB, Earphone output, AV1 video and audio input an audio class D amplifier which supports 2x3W (4ohm) outputs is built in. 3. M3663.03B Software upgrade and multimedia playback function are applicable with the USB slot. 4. M3663.03B power supports DC12V input. It fits for 28???panel.
Specification:
LCD Panel: TFT-LCD, LED backlight LCD Resolution: up to 1920*1080 Interface: single/dual 8bit LVDS Panel power: 12V/5V/3.3V OSD Language: English/French/Spanish/Russian/German/Italian/Turkish/Portuguese Relative Humidity: a???80% Storage Temperature: -10???+60a?? Operation Temperature: 0???+40a??
Package includes:

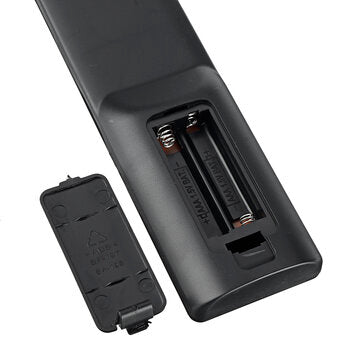

1 x Driver board 1 x English Remote control (battery not includes) 1 x 7 key button 1 x 1ch 6bit 40pins lvds cable 250mm length (You can search for the screen cable you need on banggood, for example: 2ch 6-bit, categories select Module Board.)
