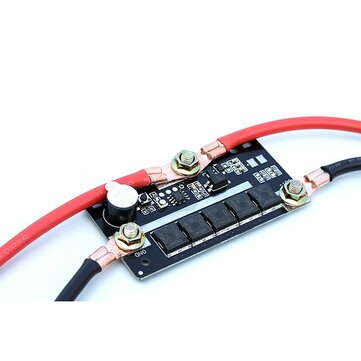

DIY Portable Battery Storage Spot Welding Machine PCB Circuit Board Welding Equipment Spot Welders f

Specifications: ? - Can be welding 18650/26650/32650 lipo battery, it is portable, stable and reliable - System voltage: 12V-14.6V - Working current: 90-150A? - Suggested battery: 1. 20-45ah Lead-acid battery with good performance and small internal resistance 2. 3.5-5.5ah 45C 3S aeromodel lithium battery pack 3. 30-35ah capacity 18650 battery pack? -This circuit with a 12V battery will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries. According to different configurations, the thickness can be about 0.1MM-0.15mm
Function Description:
After power on, press and hold the switch for 2 seconds to turn on There are 4 modes, press and hold the switch for 3 seconds to switch to a a??beepa?? sound and finish Level 1: Low power, green light flashes once 2nd gear: medium power, green light flashes twice Level 3: High power, green light flashes three times 4th gear: automatic mode When the red light is always on, press and hold the switch to turn off the device. ? NOTE: ? If the battery is pretty good and the internal resistance is very low, and then there may be large current overload. If you are not sure about your battery, it`s better to extend the wire by around 1 meter with 2.52 or 42 wire, then it will reduce the risk of power tube burnt. ? Package Included: ? 1x Main Circuit Board 2 x Input Wire 2 x Output Wire(with Welding Pen) 1 x Welding Components Kit ?
