Drillpro Aluminum Alloy 35mm Hinge Jig with Clamp Forsnter Drill Bit Drilling Guide Hole Punch Locat

Description:

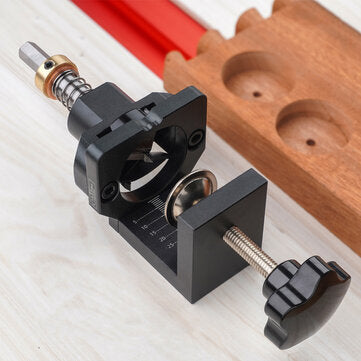

Drillpro Aluminum Alloy 35mm Hinge Jig with Clamp Drill Guide Hole Punch Locator Kit Woodworking Cabinet Door Installation Hole Locator

No Need for Extra Clamp, Including Clamp Itself, Quick and Fast Locating.

Specification:

Product name?	35mm Hinge Punch Jig Drilling Guide Locator
Color	Black
Material	Alloy
Edge Distance Adjust	3,4,5,6mm
Quantity	1pc Hole Punch Locator Set? ? ? ? ?

Features:

- [ Handle clamping plate. ] There is no need to clamp it vigorously, it has a fastening device.

- [ CNC fine grinding. ] Thickening alloy knife blade

- [ Application.] The hinge opening is suitable for 35mm hinges, no need for measuring.

Instructions:

1. The puncher is fixed on the board, it is recommended to be 30mm from the edge.

2. Adjust the distance between the limit ring and the drill sleeve to determine the depth of the hole

3. Drill the threaded rod hole and insert the round raft

4. The puncher is attached to the round raft and then clamps the board

5. Start drilling

6. Lock the wood board, when drilling the eccentric wheel hole, please ensure that the drill bit is perpendicular to the drill sleeve by 90 degrees.

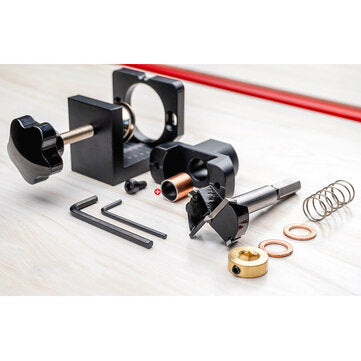

Package included:

1pc x? ? ? ? ??	Hole Punch Locator? ? ? ? ?
1pc x	Allen Socket
2pc x	Wrench
1pc x	35mm Drill Bit

More details:
