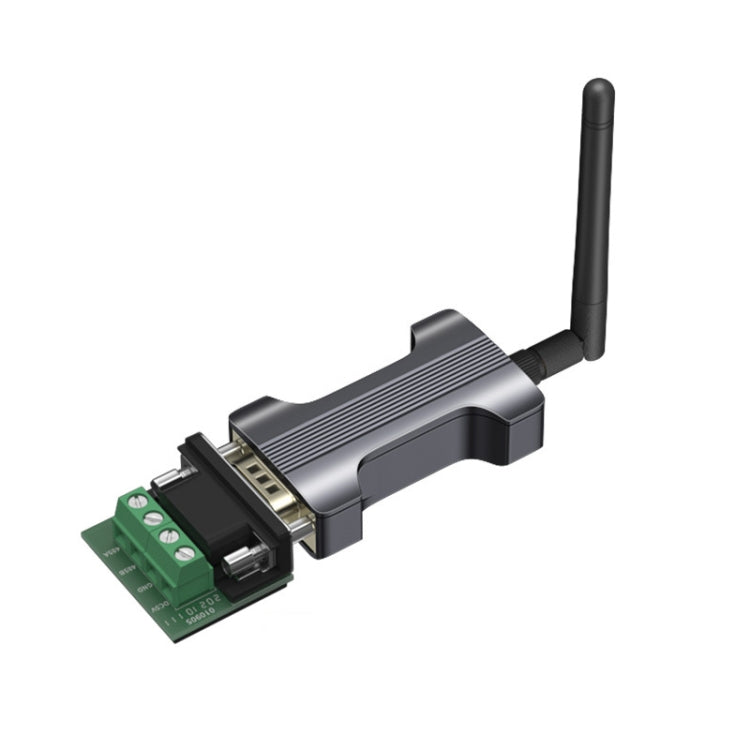

DTECH IOT5060A RS485 to LORA Serial Port Wireless Transmission Module

DTECH IOT5060A RS485 to LORA Serial Port Wireless Transmission Module

Regular price £1,165.00 GBP
Regular price £2,330.00 GBP Sale price £1,165.00 GBP
Sale Sold out
1. Communication mode: point-to-point, point-to-multipoint, multipoint-to-multipoint, can be mixed, regardless of the transceiver end 2. Working voltage: DC 5V (powered by micro usb) 3. Working current: 50mA 5V 4. Performance design: super anti-electromagnetic interference design. 5. Frequency range: 410MHz-441MHz 6. Wireless channels: 115 7. Receiving sensitivity: -140dbm 8. Transmitting power: 20dbm 9. Antenna connection: external SMA male antenna 10. Operating frequency: 433MHz 11. Baud rate: 1200-115200bps, the default baud rate is 9600bps 12. Support data bits: 7, 8, 9 13. Stop bits: 1, 15, 2 14. Check Digit: Even, Nore, Odd 15. Interface: RS485 16. Indicator light: data sending (yellow light), data receiving (green light) 17. Supported operating systems: WindowsXP/Windows7/Windows8/Windows10/Linux/Mac OS and other operating systems 18. Configuration tool: DtechWifiConfig configuration tool is used, which can be configured in a few steps and can be used (press and hold the configuration button for 5s to enter the configuration mode) 19. Transmission distance: about 0-1000 meters 20. Size: about 11.8 x 2.4 x 8.78cm 21. Weight: about 55g Features: 1. Blind insertion design, no need to distinguish between transceivers 2. Support point-to-point, point-to-multipoint, multipoint-to-multipoint wireless transceiver function design 3. Can be used with USB to LoRa for multi-functional use, flexible and extensive use 4. LORA spread spectrum modulation transmission, about 1000m long distance transmission 5. Point-to-point use can realize wireless communication between two devices, and the transmission distance is about 1000m in open areas
