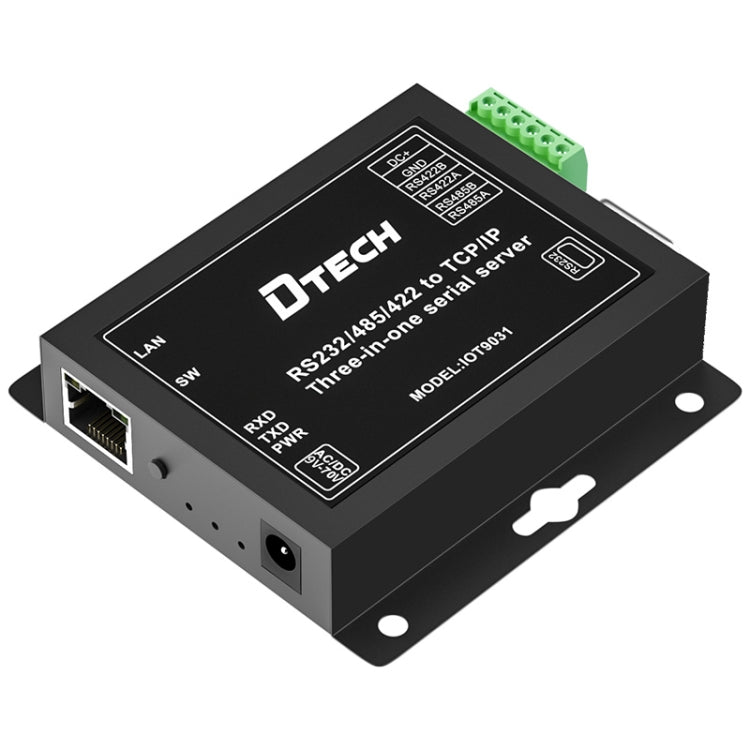

DTECH IOT9031 RS232/485/422 to TCP 3 In 1 Serial Server, CN Plug

1. Input voltage: DC 9V-70V 2. Input current: external power supply 1A 3. Power supply mode: wide voltage or POE power supply mode 4. Packing list: server x1, 12V 1A power supply x1, manual x1, foot pad x4 5. Size: about 9 x 7 x 2.15cm Ethernet Standard: 1. Number of ports: one RJ45 standard network port 2. Speed: support 10/100M, full-duplex/half-duplex adaptive Ethernet interface, compatible with 802.3 protocol 3. Network protocol: IP, TCP, DHCP, RTU, HTTPD Client 4. Buffer: send: 6K bytes, receive: 4K bytes Serial port: 1. Number of ports: two 2. Interface standard: RS-232, RS-485, RS-422 3. Data bits: 5, 6, 7, 8 4. Stop bit: 1, 2 5. Check digit: None, Even, Odd, Space, Mark 6. Baud rate: 300-921.6kbps 7. Cache: Receive: 800 bytes Software: 1. Virtual serial port: NetModuleConfig (windows2000 or higher (32/64 bit)) 2. Configuration method: PC setting software Features: 1. Connect the server device through the Intel network signal of the computer, transmit the remote RS232/485/422 communication function, the transmission distance is more than 1200m, and each converter can connect 32 RS232/485/422 interface devices 2. Using a high-speed processor chip, the signal is automatically sent and received without delay 3. Modbus RTU/TCP bidirectional transparent transmission 4. Support baud rate 300-921.6kbps data transmission, higher rate, faster data transmission 5. Built-in Ethernet media transport layer (MAC) and physical layer (PHY), support 10/100M, full-duplex/half-duplex adaptive Ethernet interface, compatible with network 802.3 protocol 6. DHCP automatically obtains IP address, DNS domain name access 7. Powerful POE power supply function, pay attention to choose POE switches with 4/5 and 7/8 power supply modes, each POE switch port can be connected to a server 8. External power supply 9-70V wide voltage, support a wide range of integrated circuits, three power supply methods, more convenient to use (POE 9-70V power supply, DC 12V 1A power supply, DC9-70V terminal power supply) 9. 4 working modes, TCP Server mode/TCP Client mode/UDP mode/HTTPD Client mode 10. Host computer virtual serial port configuration tool, easy to use 11. Widely used in automatic control system, access control system, attendance system, credit card system, POS system, power system, monitoring system, data acquisition system, bank self-service system, etc.
