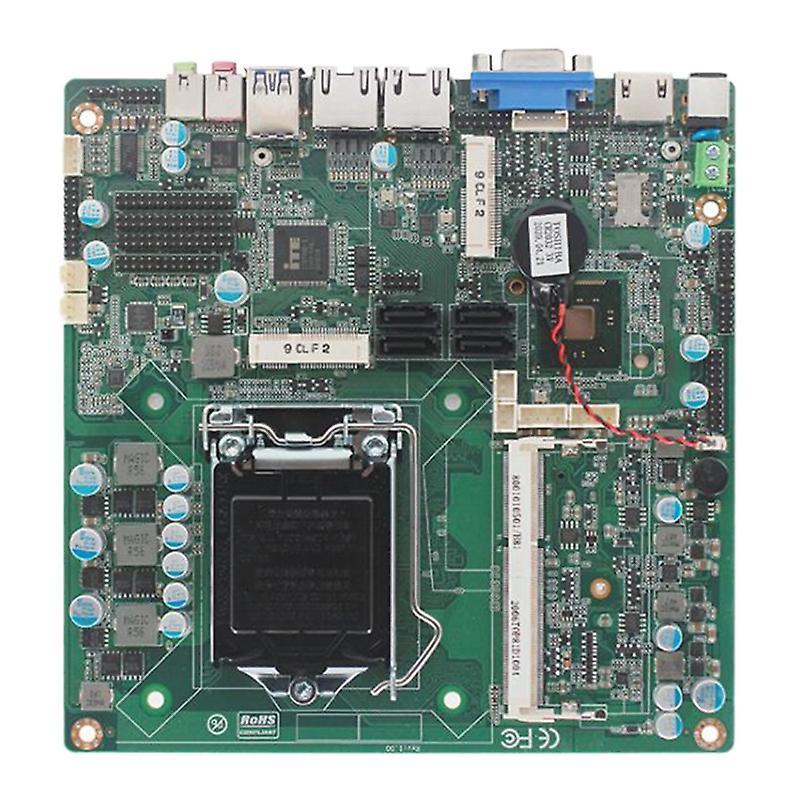

Dual Network Port Desktop Computer Itx Industrial Control Motherboard

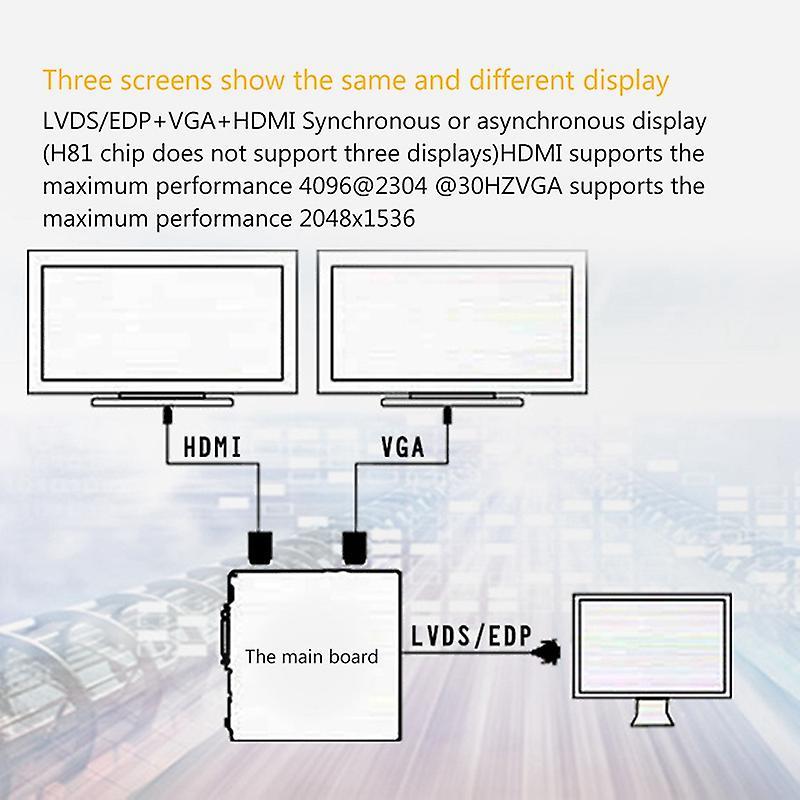

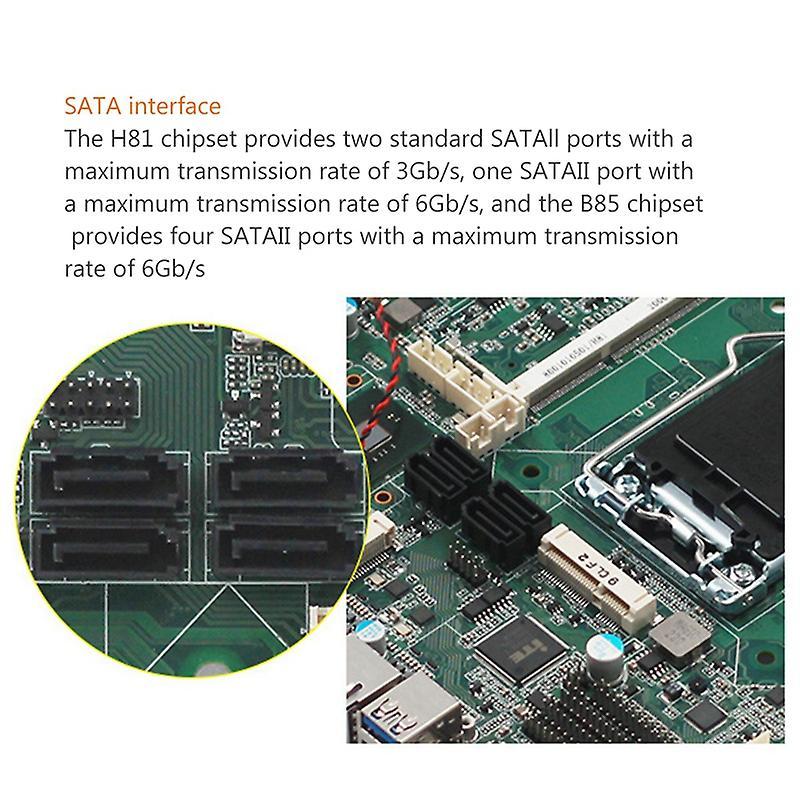

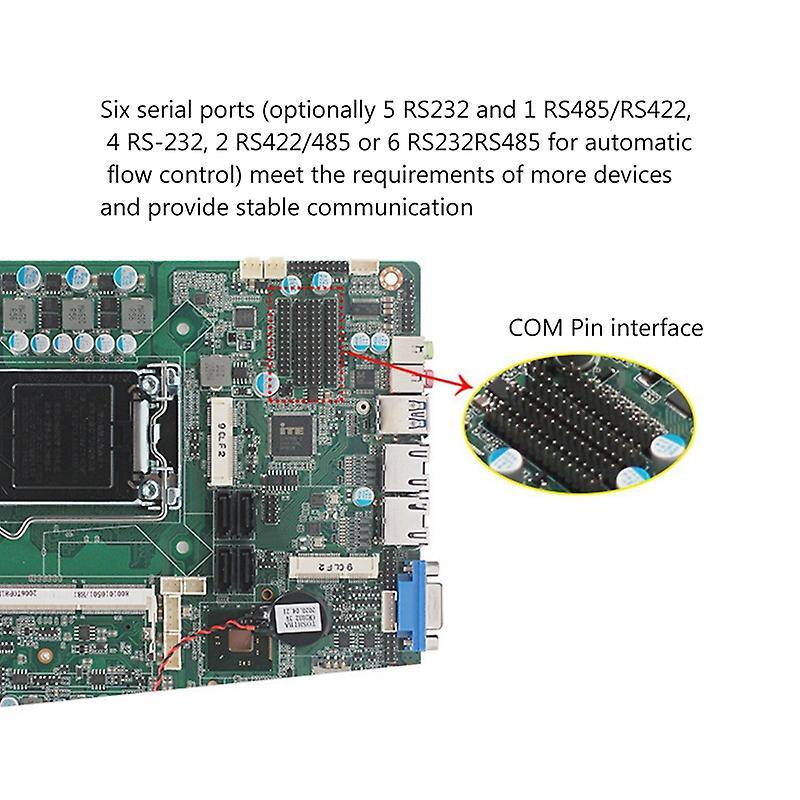

High performance itx all-in-one motherboard 2 * gigabit network card / support lga1150 interface / 1 * pcie16x / 6 * COM interfaceDual Gigabit network cards, 2 rtl8111h gigabit network cards, RJ45 interface; When the I / O interface is 4 USB, there is only 1 network cardThree screen same display and different display LVDS / EDP + VGA + HDMI synchronous or asynchronous display (H81 chip does not support three display) HDMI supports the maximum resolution 4096@2304 @30hzvga supports a maximum resolution of 2048 x one thousand five hundred and thirty-sixFor H81 chipset on SATA interface, there are two standard sataii interfaces with a maximum transmission rate of 3gb / s, one SATA III interface is sata1, and the maximum transmission rate is 6gbs. for B85 chipset, there are four SATA interfaces with a maximum transmission rate of 6gbsCOM interface 6 serial ports (5 RS232 and 1 RS485 / RS422, 4 RS-232, 2 RS422 / 485 or 6 RS232, RS485 supports automatic flow control) to meet more equipment requirements and ensure stable communicationCPU: Support LGA1150 interface Inte 4th i3/i5/i7/ Celeron/ Pent ium series CPUCPU package: LGA1150Chipset: H81/B85 high-speed chipsetBIOS: UEFI BIOSTechnical architecture: single channel DDR3 1066/1333/1600MHzSlot: 1*DDR3 SoDMM 204 Socket, maximum support 16 GB DDR3 memory, 1066/1333/1600MHzGraphics controller: Intel HD Graphics 4400 (I3-4160 graphics card); graphics card model is related to CPUDual LVDS and EDP: LVDs support dual-channel 24-bit output, the highest resolution 1920x1200 EDP supports a highest resolution of 3840*2160@60Hz (LVDS and EDP display can only choose one)VGA: VGA supports the maximum resolution of 2880*1800 ((see specific CPU model) HDMI: the maximum resolution supports HDMI (1.4) 3840*2160Dual display support: LVDS/EDP+VGA.LVDS/EDP+HDMI, HDMI+VGA synchronous or asynchronous displayAudio: Realtek HD ALC662 audio decoding (left and right channels + microphone)Super I/O: IT8786EWatchdog timer: 0-255 seconds, providing watchdog routinesNGFF: 1 interface (KEY E)Colour:As shownMaterial:PCB Size:170 x 170mmPackage Contents:1 x MotherboardOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
