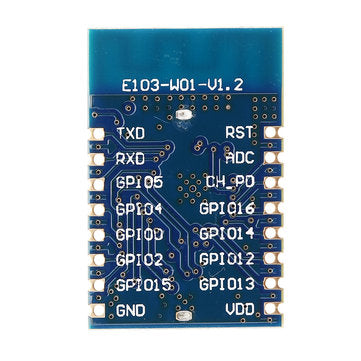

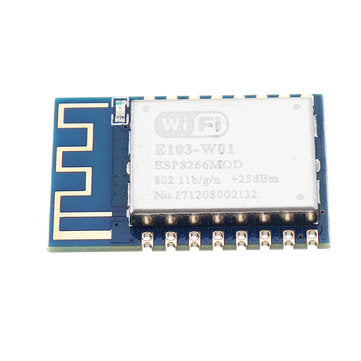

E103-W01 WIFI ESP8266EX 2.4GHz 100mW PCB Antenna IoT UHF Wireless Transceiver ESP8266 Transmitter an

More document click to download:??

Specifications:

RF?Parameter	Value	Remark
Working?frequency	2402~2483?MHz	Default:?2.4GHz
Transmitting?power	20?dBm	About?100mW
WiFi?version	802.11?b/g/n	?
Test?distance	100?meter	In?open?and?clear?air,?with?maximum?power,?5dBi?antenna?gain,?height?of?2m

Hardware?Parameter	Value	Remark
Size	16?*?24?mm	?????
Antenna?type	PCB	50???characteristic?impedance
Communication?interface	UART	?
Package	??SMD	?

Electronic?parameter	Min.	Typ.	Max.	Unit	Condition
Power?supply	3	3.3	3.6	V	?
Communication?level	3	3.3	3.6	mA	?
Transmitting?current?	165	170	180	mA	20dBm(100mW)
Sleep?current?	0.4	0.5	0.6	mA	?
Operating?temperature??	-40	20	85	????	?
Operating?humidity	10	60	90	%	?
??
Storage?temperature	-40	20	125	????	?

Package Included:

1 x?E103-W01 WIFI ESP8266EX 2.4GHz Module
