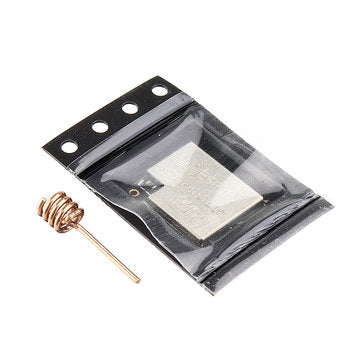

ESP-01F ESP8285 Serial Port WIFI Wireless Module 8Mbit with Antenna IOT for Smart Home

More document click to download:?

Specifications:
Package: SMD-18 SPI Flash: Built-in 8Mbit Support interface: UART/GPIO/ADC/PWM IO port: 9 Serial port rate: support 300-4608000bps, default 115200bps Spectrum range: 2412-2484MHz Power supply range: 3.0V- 3.6V Supply current: >300mA Working temperature: -20 ?￣ C ~ 85 ?￣ C Storage environment: -40 ?￣ C ~ 90 ?￣ C, <90% RH CCK, 1Mbps: -90dBm CCK, 11Mbps: -85dBm 6Mbps (2 BPSK): -88dBm 54Mbps (3/4 64-QAM): -70dBm HT20, MCS7 (65Mbps, 72.2Mbps): -67dBm ? Features: ? - Smallest 802.11b/g/n Wi-Fi SOC module - Low-power 32-bit CPU for dual application processor - Main frequency up to 160MHz - Built-in 10bit high?precise?ADC - Supports interfaces such as UART/GPIO/ADC/PWM - SMD-18 package for easy soldering and testing - Support multiple sleep modes, deep sleep current resists 20uA - Embedded Lwip protocol stack - Support STA/AP/STA+AP working mode - AT?order?can get started quickly - Support for serial local upgrade and remote firmware upgrade (FOTA) ? Package Included: ? 1 x ESP01F Wireless WIFI Module
