ETX-1825 Multi-function Process Calibrator Multimeter with A Split-screen Display Support for PC Com

Features:

A split-screen display. The upper display allows you to measure volts, current (with loop power), resistance and continuity test. The lower display allows you to measure and source volts, current, resistance temperature detectors (RTD), thermocouples (TC), frequency, and ohms. Calibrates a transmitter using the split-screen. The measure of thermocouple provides automatic reference junction. Automatic and manual cold end temperature compensation for TC. Manual stepping and automatic stepping and ramping. Super-strong protection:The waterproof grade is IP67. Automatic protection against the signal terminals connect to the 220V. Support for PC communication.
Accuracy:?0.05% ? Specification:

Function	Measure	Source
DC V	0 ~ 50V (the upper display ± 30V)	0 ~ 10V
DC mA	0 ~ 24mA (the upper display ± 24mA)	0 ~ 24mA
Frequency	1.000Hz ~ 100.00kHz	0.00Hz ~ 20.000kHz
Resistance	0 ~ 3200??	0 ~ 3200??
DC mV	0 ~ 100mV (the upper display ± 200mV)	0 ~ 100mV
RTD	Pt100, Pt1000, Cu50, Cu100	Pt100, Pt1000, Cu50, Cu100
TC	E, J, K, T, B, R, S, N	E, J, K, T, B, R, S, N
Others	Loop supply, Step, Ramp, Dual display

? Package included:

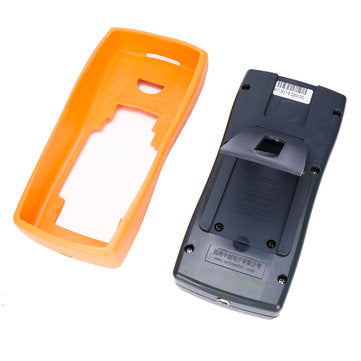

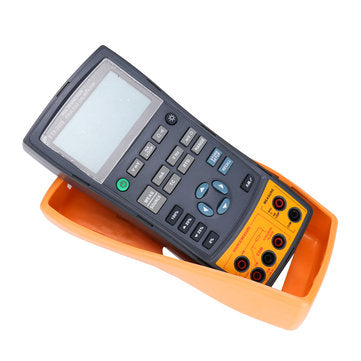

1 x?ETX-1825 Multi-function Process Calibrator ? Details pictures:
