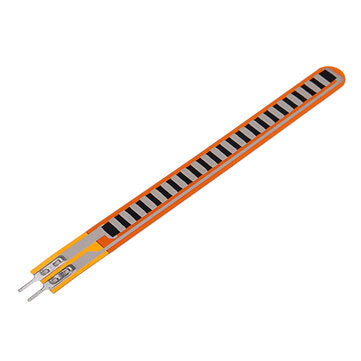

Flex Sensor 2.2 Inch Bend Flex Sensor for Robotic Hand Electronic Gloves

Description:

2.2 Bending sensor. The degree of bending of the sensor can be converted into a change in resistance value. The larger the bending,
the higher the resistance. This sensor can be used to make energy gloves.
Note: Bending direction: The side with the word is the inner side when bent. Avoid bending the end pin portion (ie, the non-bending
sensing portion) during use, otherwise it is likely to cause damage.

Technical specifications:

Straight resistance: 25K ohms
Resistance tolerance: ±30%
Bending resistance change: 60KNI 10K ohm
Rated power: 0.5 watt
Peak power: 1 watt
Bending life: >1 million times
Working temperature: -35C +80C

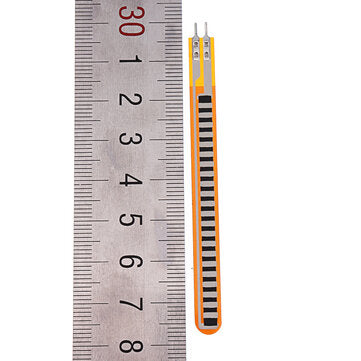

Length x width: 73.66x6.35mm
Interface type: 2-Pin metal pin (pitch 0.1)

Package included:

1 x 2.2 Inch Bend Flex Sensor
