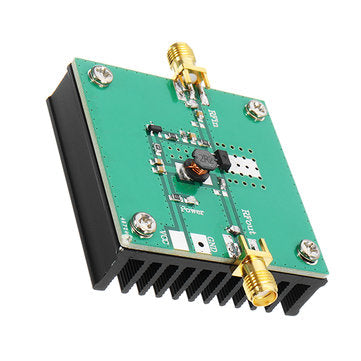

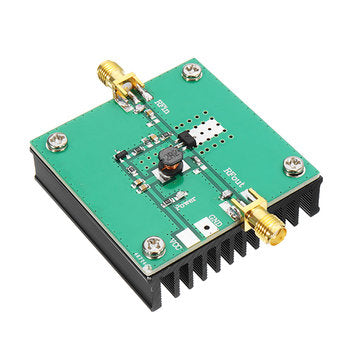

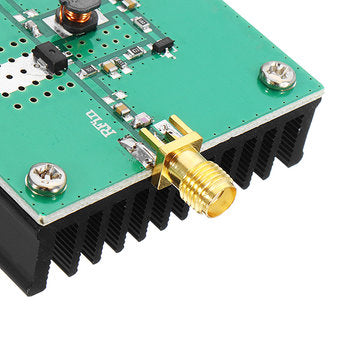

FM 100MHz RF Power Amplifier 5W
FM 100MHz RF Power Amplifier 5W
Regular price
$670.00 USD
Regular price
$1,116.67 USD
Sale price
$670.00 USD
Unit price
per
Couldn't load pickup availability
Product Usage:
? The broadband RF power amplifier is suitable for use in FM (88--108MHz) emission learning studies. Input 0.1W can output 5.0W @ 7.2V power,
with a very high conversion efficiency, the amplifier is equipped with heat sink, long-term stable operation.
? Technical Parameters:
? Operating frequency: 88--108MHz Input power: 0.01W (10dBm) Maximum output: 2.5W (34dBm) 5.0V power supply 5.0W (37dBm) 7.2V Power Supply 8.0W (39dBm) 10.0V power supply (not recommended) Operating voltage: 5--7.2V (DC) Operating current: 1--2A (determined by output power) RF connector: standard SMA female Dimensions: 50*50*15mm (length*width*height) Product weight: 55g (heat sink blackened)
Package included:
1 x?FM 100MHz RF Power Amplifier
