G3/4 12V PP Normally Closed Type Solenoid Valve Water Diverter Device

Description:

G3/4 12V PP Normally Closed Type Solenoid Valve Water Diverter Device

This is made of PP material and it is water proof, damp-proof, temperature resistance,insulation and good thermolysis.

Specification:
Material: PP
Voltage: about 12V DC
Rated power: about 5W
Operation model: normally closed (N/C)
Pressure: about 0.02 - 0.8Mpa
Port size: about G3/4
Fluid temperature: about 0-100 degrees Celsius
Usage: water and low viscosity fluids
Flow characterastics:
about 0.02Mpa>2L/min;
about 0.10Mpa>10L/min;
about 0.30Mpa>16L/min;
about 0.80Mpa>28L/min

Package Included:
1 x Solenoid valve

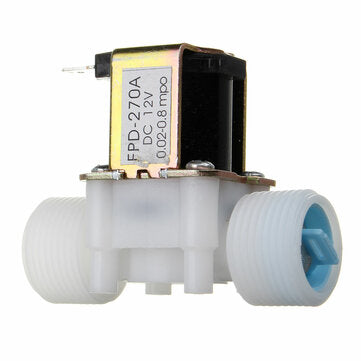

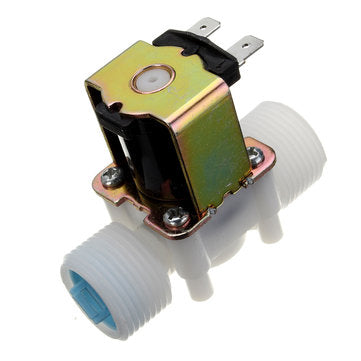

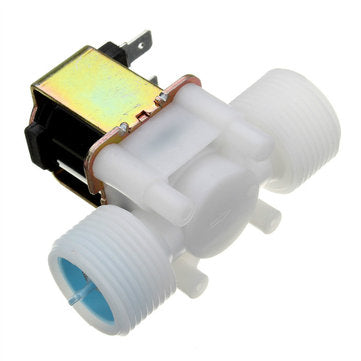

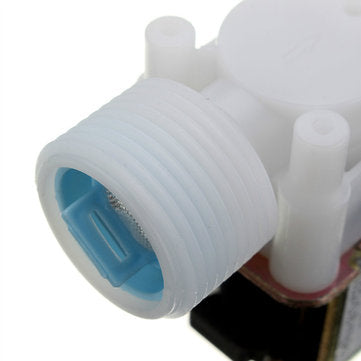

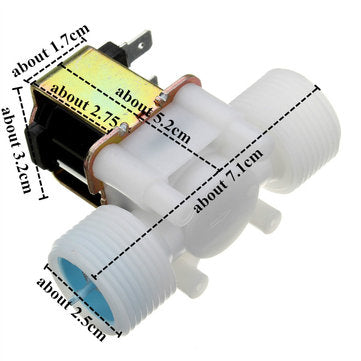

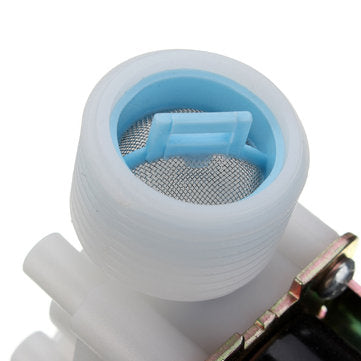

Detail pictures:
