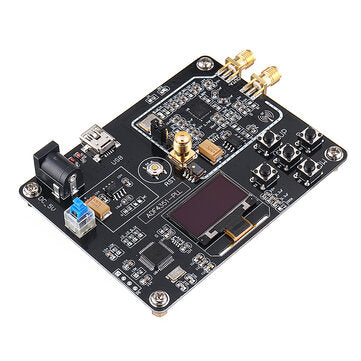

Geekcreit Signal Generator Module 35M-4.4GHz RF Signal Source Frequency Synthesizer ADF4351 Develo

Note:?The on-board signal source of the product can work normally, no external signal source is required. If you need an external signal source, you can change the source code by yourself.
Highlights: ? With OLED display Host computer USB & serial port Integrated key operation Wide range voltage supply Good man-machine interface ?Many improvements on the phase noise, phase spurious and loop filter Much enhancement on the power filter and ground processing Module can achieve 35MHz - 4.4GHz frequency output, point frequency, sweep, frequency hopping and other basic functions ? Parameters: ? Dimensions: 88mm * 67mm Power supply: 5V-15V (DC 5.1MM); 5V (USB) Bandwidth: ADF4351: 35MHz - 4.4GHz; ADF4350: 137MHz - 4.4GHz Module step: 100KHz(min) Frequency error: ± 1KHz Output: OUTA OUTB two way Module phase noise: better than -100dBc @ 10KHz (noise is different with different band phase) Module output power: 7dBm (MAX) Module interface: The external communication port of the STM32 USB can be configured to USB or analog serial port (in default) Module program download mode: SW module, three-wire system (GND SWCLK SWDIO) ? Packing includes: ? 1 x Module 1 x USB-mini line 1 x BNC male head to SMA male high-frequency cable
