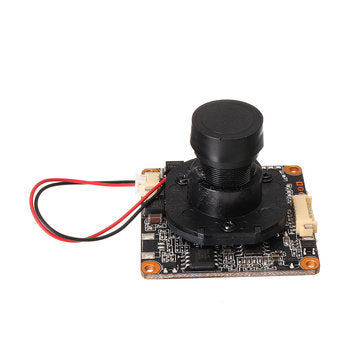

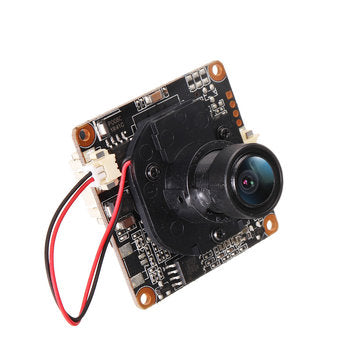

H.265 Mstar 2 Million Starlight Network Module Low Bit Rate Monitoring IP Chip With Camera

No technical support.

Feature: ?

Hardware Structure	MSTAR MSC313E + 200-megapixel 1/2.9 Low-light CMOS S0NY Exmor IMX323
Minimum Illumination	Color 0.01 Lux@F1.2, black and white 0.005 Lux@F1.2
Wide Dynamic Range	Digital Wide Dynamic
Signal to Noise Ratio	a???50dB
Image Quality	Saturation setting, contrast setting, sharpness setting, brightness setting, auto white balance, manual white balance setting, backlight compensation setting, strong light suppression setting, auto exposure, 2D/3D noise reduction intensity setting, fog setting , WDR mode strength settings
Video Features	Masking, OSD Character Overlay, Motion Detect
Interface	Audio linear input and output. 4x AF zoom lens.
Coding Format	H.264 Main Profile/High Profile
	H.265/HEVC Main Profile/High Profile
Image Resolution	2 million main stream: 1920*1080, 1-20 frames/second
	1.0 million main stream: 1280*720, 1-30 frames/sec
	Substream: 640*480, 640*360, 1-30 frames/sec
Image Mode	Horizontal flip and vertical flip
Video Compression Rate	32Kbps-3.5Mbps continuously adjustable, support CBR / VBR
Audio Code	G.711A/U audio codec standard, support two-way voice intercom function, support audio and video synchronization
Network Interface	10/100M adaptive Ethernet interface, light protection design, Differential mode> 2000V, Common mode> 6000V level
Protocol Support	Supports HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P network protocols and supports Haikang`s proprietary protocol
Digital Storage	This feature is not supported at this time.
Mobile Client	Support Windows Mobile, I0S, Android platform

? Package includes: ? 1 x H.265 Mstar Network Module
