HackRF One 1MHz to 6GHz Radio Platform Development Board Software-Defined RTL SDR Demoboard Kit Dong

Common problem: ? Q. The computer cannot find the machine. / USB is not recognized. A: Requires firmware installation. If the firmware still does not work after you install the firmware, you can reflash the firmware.
Other files:?




Feature: ? HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next-generation radio technologies, HackRF One is an open-source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation. ? Specifications: ? - 1MHz to 6 GHz operating frequency - Half-duplex transceiver - Up to 20 million samples per second - 8-bit quadrature samples (8-bit I and 8-bit Q) - Compatible with GNU Radio, SDR#, and more - Software-configurable RX and TX gain and baseband filter - Software-controlled antenna port power (50 mA at 3.3 V) - SMA female antenna connector - SMA female clock input and output for synchronization - Convenient buttons for programming - Internal pin headers for expansion - Hi-Speed USB 2.0 - USB-powered - Open-source hardware

Parameters: ? - Frequency band: 1MHz-6Ghz - Data bandwidth: 20MHz - Sampling accuracy ( ADC/DAC) : 8BIT - Sampling speed ( ADC/DAC): 20Mbps - Interface: USB2.0 - Open-source - Maximum transmitting power: 10dbm - 64QAM transmitting EVM: 1.5% - Complex sampling bandwidth: 20Mhz ? Hardware: ? - Mixer RFFC5072: 80MHz-4200MHz - Wireless bandwidth RF transceiver MAX2837: 2.3Ghz-2.7Ghz - Processor LPC4330: Main frequency 204MHz - Amplifier MGA-81563: 0.1-6Ghz, 3V, 14dbm

Package includes:?

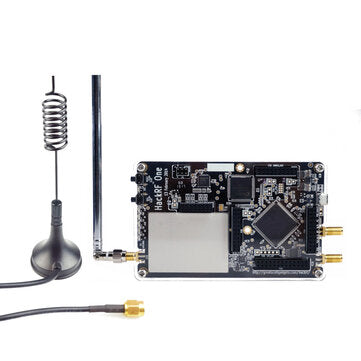

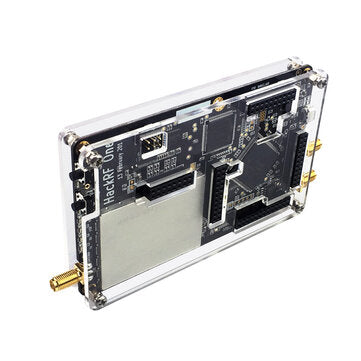

1 x HackRF One board with Acrylic Shell 1 x UHF Antenna (40Mhz-6GHz)

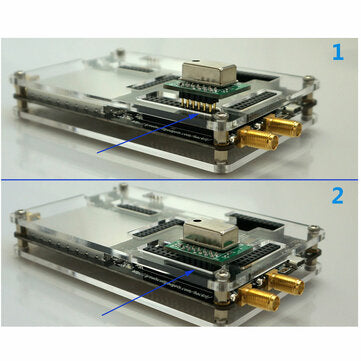

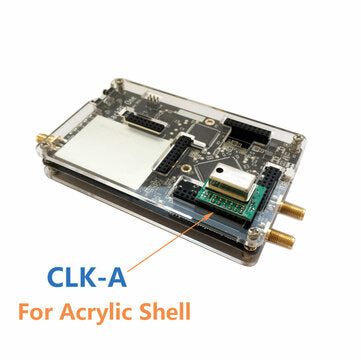

1 x UHF/VHF Antenna 1 x USB Cable 1 x TCXO clock ?0.1PPM ?
