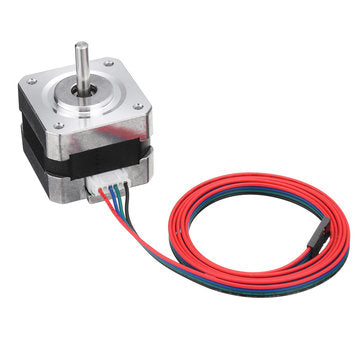

HANPOSE 17HS3401 34mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.3A 28N.cm 4-lead for CNC 3D Printer

Description:
HANPOSE 17HS3401 34mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.3A 28N.cm 4-lead for CNC 3D Printer
Certification:?CE, ROSH, ISO, FCC

Specification:

Model	17HS3401
Type	Hybrid
Phase	2
Step Angle	1.8?￣

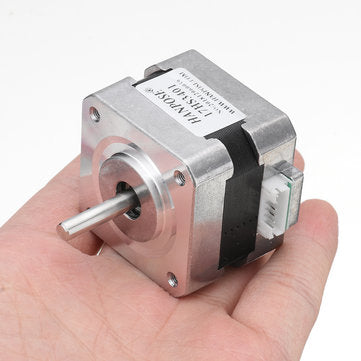

Motor Size	42 x 34mm

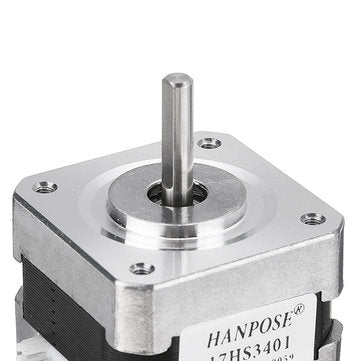

Shaft	D shaft 21 x?D??5mm
Outlet way	4 plug line
Motor leads	Dupont line(1M)
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,?Laser engraving, Automation Equipment, ?Non-standard?Equipment,?Placement machine?ect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated? Current	Resistance /Phase	Inductance /Phase	Holding Torque	Detent Torque	Inertia Of Rotor	? Lead?
	( ?￣)	(L)mm	(A)	(??)	(mH)	(N.cm)?	(N.cm)?	(G.?cm2)	(No.)
17HS3401	1.8	34	1.3	2.4	2.8	28	1.6	34	4

General Specification:

Precision angle step	±5% (full step, no charge)
Resistance accuracy	±10%
Precision inductance	±20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20?￣)-(+ 50?￣)
Insulation resistance	100M?? Min, 500VDC
Insultion Force	500VAC for a minute

Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance. ? Package Included:
1 X?17HS3401?Stepper Motor?
