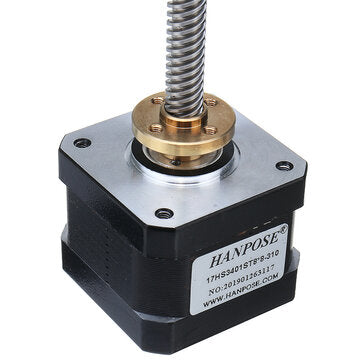

HANPOSE 17HS3401-S T8x8 Nema 17 Lead Screw Stepper Motor Linear Actuators 34mm 1.3A... (SIZE: 100MM)

SELECTED OPTION:
SIZE: 100MM

Description:
HANPOSE 17HS3401S T8x8 Nema 17 Lead Screw Stepper Motor Linear Actuators
34mm 1.3A 28N.cm 4-lead 42 Motor 100-500mm Trapezoidal Lead Screw for 3D printer Z Axis
Certification:?CE,?ROSH,?ISO,?FCC
Motor Color:?Black(Surface?Treatment)

Specification:

Model	17HS3401-S T8*8
Motor Type	Hybrid
Phase	2
Step Angle	1.8?￣
Motor Size	42*34 mm
Screw Diameter	8mm
Screw Pitch	8mm
Screw Effective Stroke	100/150/200/250/300/350/400/500mm
Outlet way	4 plug line
Motor leads	Dupont line(1M)
Adapter drive	Two-phase step drive
Certification	ROHS, Iso, CE, UL, CCC?
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,?Laser engraving, Automation Equipment, ?Non-standard?Equipment, Placement machine?ect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated? Current	Resistance /Phase	Inductance /Phase	Holding Torque	Couple relaxing?	Inertia Of Rotor	? Lead?
	( ?￣)	(L)mm	(A)	(??)	(mH)	(N.cm)?	(N.cm)?	(G.?cm2)	(No.)
17HS3401S-T8?	1.8	34	1.3	2.4	2.8	28	1.6	34	4

General Specification:

Precision angle step	±5% (full step, no charge)
Resistance accuracy	±10%
Precision inductance	±20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20?￣)-(+ 50?￣)
Insulation resistance	100M?? Min, 500VDC
Insultion Force	500VAC for a minute

Features:
1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance.
5. Structure is stable, not card machine.
6. Speet uniform, do not lose step. ? Package Included: 1 X 17HS3401-S T8x8 100-500mm Stepper Motor
More Details:?
